KNX BASIC COURSE
5.1 On/Off (1.001)

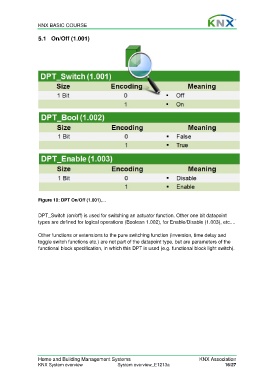

Figure 10: DPT On/Off (1.001),...
DPT_Switch (on/off) is used for switching an actuator function. Other one bit datapoint
types are defined for logical operations (Boolean 1.002), for Enable/Disable (1.003), etc....
Other functions or extensions to the pure switching function (inversion, time delay and
toggle switch functions etc.) are not part of the datapoint type, but are parameters of the
functional block specification, in which this DPT is used (e.g. functional block light switch).
