KNX BASIC COURSE

                  9   Superimposing data and supply voltage

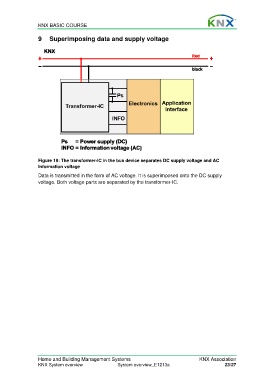

                  Figure 19: The transformer-IC in the bus device separates DC supply voltage and AC
                  Information voltage

                  Data is transmitted in the form of AC voltage. It is superimposed onto the DC supply
                  voltage. Both voltage parts are separated by the transformer-IC.
