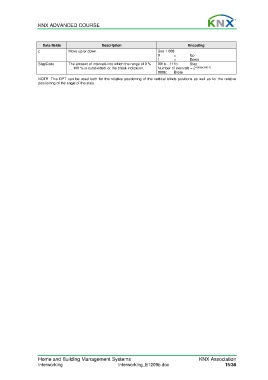

KNX ADVANCED COURSE

Data fields Description Encoding
c Move up or down. See 1.008
0 = Up
1 = Down
StepCode The amount of intervals into which the range of 0 % 001b…111b: Step
… 100 % is subdivided, or the break indication. Number of intervals = 2^ (stepcode-1)
000b: Break
NOTE This DPT can be used both for the relative positioning of the vertical blinds positions as well as for the relative
positioning of the angle of the slats.
