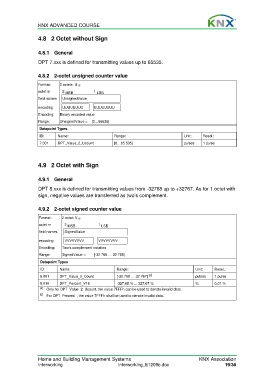

KNX ADVANCED COURSE

4.8 2 Octet without Sign

4.8.1 General
DPT 7.xxx is defined for transmitting values up to 65535.

4.8.2 2-octet unsigned counter value

Format: 2 octets: U 16
octet nr 2 MSB 1 LSB
field names UnsignedValue
encoding

UUUUUUUU
UUUUUUUU

Encoding: Binary encoded value
Range: UnsignedValue = [0…65535]
Datapoint Types
ID: Name: Range: Unit: Resol.:
7.001 DPT_Value_2_Ucount [0…65 535] pulses 1 pulse

4.9 2 Octet with Sign

4.9.1 General
DPT 8.xxx is defined for transmitting values from -32768 up to +32767. As for 1 octet with
sign, negative values are transferred as two’s complement.

4.9.2 2-octet signed counter value

Format: 2 octet: V 16
octet nr 2 MSB 1 LSB
field names SignedValue
encoding
VVVVVVVV

VVVVVVVV

Encoding: Two’s complement notation
Range: SignedValue = [-32 768 … 32 768]
Datapoint Types
ID: Name: Range: Unit: Resol.:
8.001 DPT_Value_2_Count [-32 768 … 32 767] a) pulses 1 pulse
8.010 DPT_Percent_V16 -327,68 % ... 327,67 % % 0,01 %
a) Only for DPT_Value_2_Ucount, the value 7FFFh can be used to denote invalid data.
b) For DPT_Percent_, the value 7FFFh shall be used to denote invalid data.
