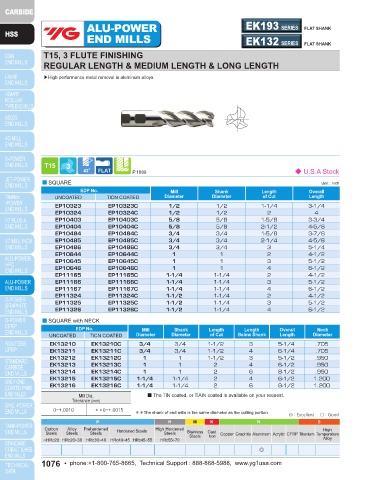

ALU-POWER EK193 SERIES FLAT SHANK ALU-POWER
END MILLS EK132 SERIES FLAT SHANK END MILLS EK193 SERIES FLAT SHANK

T15, 3 FLUTE FINISHING T15, 3 FLUTE FINISHING CORNER RADIUS
REGULAR LENGTH & MEDIUM LENGTH & LONG LENGTH REGULAR LENGTH & MEDIUM LENGTH & LONG LENGTH

▶High performance metal removal in aluminum alloys. ▶High performance metal removal in aluminum alloys.
▶Corner radius against chipping

R
↙

P.1089 ◆ U.S.A Stock P.1089 ◆ U.S.A Stock
■ SQUARE Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Corner Radius Mill Shank Length Overall
UNCOATED TiCN COATED Diameter Diameter of Cut Length UNCOATED TiCN COATED R Diameter Diameter of Cut Length
EP10323 EP10323C 1/2 1/2 1-1/4 3-1/4 EP10321 EP10321C R.120 1/2 1/2 1-1/4 3-1/4
EP10324 EP10324C 1/2 1/2 2 4 EP10322 EP10322C R.120 1/2 1/2 2 4
EP10403 EP10403C 5/8 5/8 1-5/8 3-3/4 EP10401 EP10401C R.120 5/8 5/8 1-5/8 3-3/4
EP10404 EP10404C 5/8 5/8 2-1/2 4-5/8 EP10402 EP10402C R.120 5/8 5/8 2-1/2 4-5/8
EP10484 EP10484C 3/4 3/4 1-5/8 3-7/8 EP10481 EP10481C R.120 3/4 3/4 1-5/8 3-7/8
EP10485 EP10485C 3/4 3/4 2-1/4 4-5/8 EP10482 EP10482C R.120 3/4 3/4 2-1/4 4-5/8
EP10486 EP10486C 3/4 3/4 3 5-1/4 EP10483 EP10483C R.120 3/4 3/4 3 5-1/4
EP10644 EP10644C 1 1 2 4-1/2 EP10641 EP10641C R.120 1 1 2 4-1/2
EP10645 EP10645C 1 1 3 5-1/2 EP10642 EP10642C R.120 1 1 3 5-1/2
EP10646 EP10646C 1 1 4 6-1/2 EP10643 EP10643C R.120 1 1 4 6-1/2
EP11165 EP11165C 1-1/4 1-1/4 2 4-1/2 EP11162 EP11162C R.120 1-1/4 1-1/4 2 4-1/2
EP11166 EP11166C 1-1/4 1-1/4 3 5-1/2 EP11163 EP11163C R.120 1-1/4 1-1/4 3 5-1/2
EP11167 EP11167C 1-1/4 1-1/4 4 6-1/2 EP11164 EP11164C R.120 1-1/4 1-1/4 4 6-1/2
EP11324 EP11324C 1-1/2 1-1/4 2 4-1/2 EP11321 EP11321C R.120 1-1/2 1-1/4 2 4-1/2
EP11325 EP11325C 1-1/2 1-1/4 3 5-1/2 EP11322 EP11322C R.120 1-1/2 1-1/4 3 5-1/2
EP11326 EP11326C 1-1/2 1-1/4 4 6-1/2 EP11323 EP11323C R.120 1-1/2 1-1/4 4 6-1/2
■ SQUARE with NECK ■ The TiN coated, or TiAlN coated is available on your request.
EDP No. Mill Shank Length Length Overall Neck
UNCOATED TiCN COATED Diameter Diameter of Cut Below Shank Length Diameter Mill Dia.
Tolerance (inch)
EK13210 EK13210C 3/4 3/4 1-1/2 3 5-1/4 .705
EK13211 EK13211C 3/4 3/4 1-1/2 4 6-1/4 .705 0~+.0010 ✽✽0~+.0015
EK13212C
1
EK13212
LThe shank of end mills is the same diameter as the cutting portion. 1 1-1/2 3 5-1/2 .950 ✽✽The shank of end mills is the same diameter as the cutting portion.
EK13213 EK13213C 1 1 2 4 6-1/2 .950
EK13214 EK13214C 1 1 2 6 8-1/2 .950
EK13215 EK13215C 1-1/4 1-1/4 2 4 6-1/2 1.200
EK13216 EK13216C 1-1/4 1-1/4 2 6 8-1/2 1.200
Mill Dia. ■ The TiN coated, or TiAlN coated is available on your request.
Tolerance (inch)
0~+.0010 ✽✽0~+.0015
✽✽The shank of end mills is the same diameter as the cutting portion. ◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎
