ALU-POWER ALU-POWER

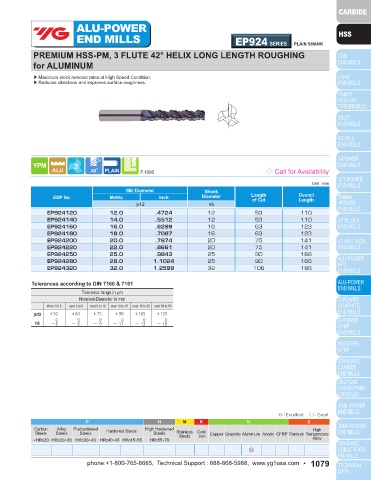

END MILLS EP922 SERIES PLAIN SHANK END MILLS EP924 SERIES PLAIN SHANK

PREMIUM HSS-PM, 3 FLUTE 42° HELIX SHORT LENGTH ROUGHING PREMIUM HSS-PM, 3 FLUTE 42° HELIX LONG LENGTH ROUGHING
for ALUMINUM for ALUMINUM

▶ Maximum stock removal rates at High Speed Condition. ▶ Maximum stock removal rates at High Speed Condition.
▶ Reduces vibrations and improves surface roughness. ▶ Reduces vibrations and improves surface roughness.

P.1090 ◇ Call for Availability P.1090 ◇ Call for Availability
Unit : mm Unit : mm
Mill Diameter Shank Mill Diameter Shank
EDP No. Metric Inch Diameter Length Overall EDP No. Metric Inch Diameter Length Overall
Length
of Cut
Length
of Cut
js12 h6 js12 h6
EP922120 12.0 .4724 12 26 83 EP924120 12.0 .4724 12 53 110
EP922140 14.0 .5512 12 26 83 EP924140 14.0 .5512 12 53 110
EP922160 16.0 .6299 16 32 92 EP924160 16.0 .6299 16 63 123
EP922180 18.0 .7087 16 32 92 EP924180 18.0 .7087 16 63 123
EP922200 20.0 .7874 20 38 104 EP924200 20.0 .7874 20 75 141
EP922220 22.0 .8661 20 38 104 EP924220 22.0 .8661 20 75 141
EP922250 25.0 .9843 25 45 121 EP924250 25.0 .9843 25 90 166
EP922280 28.0 1.1024 25 45 121 EP924280 28.0 1.1024 25 90 166
EP922320 32.0 1.2598 32 53 133 EP924320 32.0 1.2598 32 106 186

Tolerances according to DIN 7160 & 7161 Tolerances according to DIN 7160 & 7161
Tolerance range in µm Tolerance range in µm
Nominal-Diameter in mm Nominal-Diameter in mm
from 1 to 3 over 3 to 6 over 6 to 10 over 10 to 18 over 18 to 30 over 30 to 50 from 1 to 3 over 3 to 6 over 6 to 10 over 10 to 18 over 18 to 30 over 30 to 50
js12 ± 50 ± 60 ± 75 ± 90 ± 105 ± 125 js12 ± 50 ± 60 ± 75 ± 90 ± 105 ± 125
0 0 0 0 0 0 0 0 0 0 0 0
h6 — 6 — 8 — 9 — 11 — 13 — 16 h6 — 6 — 8 — 9 — 11 — 13 — 16

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎
