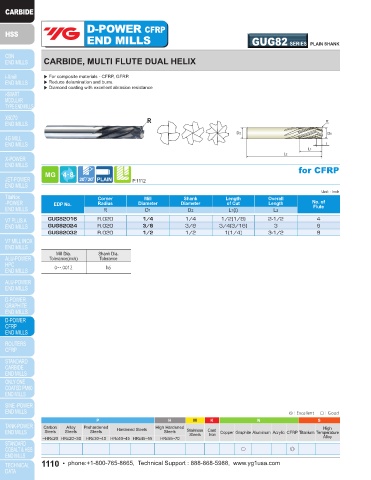

D-POWER CFRP D-POWER CFRP
END MILLS GUG82 SERIES PLAIN SHANK END MILLS GUG83 SERIES PLAIN SHANK

CARBIDE, MULTI FLUTE DUAL HELIX CARBIDE, 4 FLUTE

▶ For composite materials - CFRP, GFRP. ▶ For composite materials - CFRP, GFRP.
▶ Reduce delamination and burrs. ▶ Reduce delamination and burrs.
▶ Diamond coating with excellent abrasion resistance ▶ Diamond coating with excellent abrasion resistance

R R R
↙ ↙ R

for CFRP for CFRP
P.1112 P.1112

Unit : Inch Unit : Inch
Corner Mill Shank Length Overall Corner Mill Shank Length Overall
EDP No. Radius Diameter Diameter of Cut Length No. of EDP No. Radius Diameter Diameter of Cut Length No. of
Flute
Flute
R D1 D2 L1(l) L2 R D1 D2 L1(l) L2
GUG82016 R.020 1/4 1/4 1/2(1/8) 2-1/2 4 GUG83016 R.010 1/4 1/4 3/4 2-1/2 4
GUG82024 R.020 3/8 3/8 3/4(3/16) 3 6 GUG83024 R.015 3/8 3/8 1-1/4 3-1/4 4
GUG82032 R.020 1/2 1/2 1(1/4) 3-1/2 8 GUG83032 R.015 1/2 1/2 1-1/2 4 4

Mill Dia. Shank Dia. Mill Dia. Shank Dia.
Tolerance(inch) Tolerance Tolerance(inch) Tolerance
0~-.0012 h6 0~-.0012 h6

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
○ ◎ ○ ◎
