D-POWER CFRP
END MILLS RECOMMENDED CUTTING CONDITIONS
CARBIDE, MULTI FLUTE DUAL HELIX CARBIDE Being the best through innovation
GUG82 SERIES
N
MATERIAL
CFRP GFRP CFRP GFRP
DIAMETER RPM FEED RPM FEED RPM FEED RPM FEED
1/4 7520 41.45 4010 15.79 10026 74.21 5013 27.63
3/8 5013 65.13 2674 23.37 6684 121.58 3342 35.53
1/2 3760 76.97 2005 27.16 5013 145.26 2507 39.47
1.0D 1.0D
0.4D 0.02D
RPM = rev./min.
FEED = inch/min.
CARBIDE, 4 FLUTE
GUG83 SERIES
N
MATERIAL
CFRP GFRP CFRP GFRP
DIAMETER RPM FEED RPM FEED RPM FEED RPM FEED
1/4 10026 55.26 5013 19.74 10026 44.21 5013 19.74
3/8 6684 57.89 3342 19.47 6684 46.32 3342 16.84
1/2 5013 51.32 2507 16.97 5013 41.05 2507 13.82

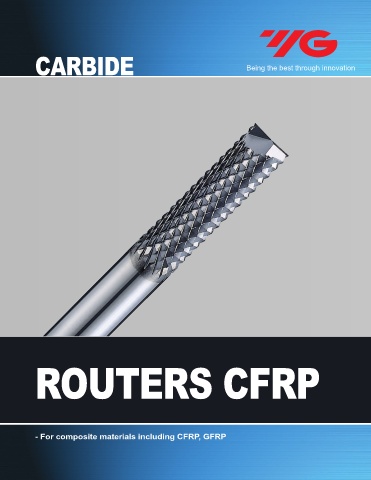

ROUTERS CFRP
1.5D 1.5D
0.4D 0.1D
RPM = rev./min.
FEED = inch/min.
- For composite materials including CFRP, GFRP
