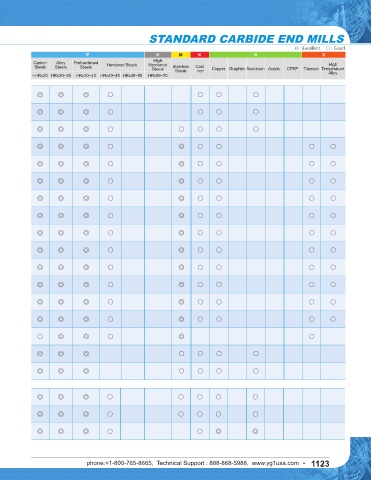

SELECTION GUIDE STANDARD CARBIDE END MILLS

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
MIN MAX ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
INCH
E5060 CARBIDE, 4 FLUTE LONG LENGTH BALL NOSE R1/16 R1/2 1141 ◎ ◎ ◎ ○ ○ ○ ○

E5018 CARBIDE, 2 FLUTE EXTRA LONG LENGTH BALL NOSE R1/16 R1/2 1142 ◎ ◎ ◎ ○ ○ ○ ○

E5062 CARBIDE, 4 FLUTE EXTRA LONG LENGTH BALL NOSE R1/16 R1/2 1143 ◎ ◎ ◎ ○ ○ ○ ○ ○

E5251
E5252 CARBIDE, 2&4 FLUTE STUB LENGTH DOUBLE BALL NOSE R7/64 R1/4 1144 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○
E5216 CARBIDE, 4 FLUTE REGULAR LENGTH CORNER RADIUS D1/8 D1 1145 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5069 CARBIDE, 5 FLUTE 45° HELIX REGULAR LENGTH CORNER RADIUS D1/4 D1 1147 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5243 CARBIDE, 3 FLUTE 45° HELIX REGULAR LENGTH D1/8 D1 1148 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5059 CARBIDE, 3 FLUTE 50° HELIX STUB & REGULAR & LONG LENGTH D1/4 D3/4 1149 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5246 CARBIDE, 3 FLUTE 60° HELIX REGULAR LENGTH D1/8 D1 1150 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5066 CARBIDE, 5 FLUTE 45° HELIX STUB LENGTH D1/8 D1 1151 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5067 CARBIDE, 5 FLUTE 45° HELIX REGULAR LENGTH D1/8 D1 1152 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5068 CARBIDE, 5 FLUTE 45° HELIX MEDIUM & LONG LENGTH D1/4 D1 1153 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5073 CARBIDE, 5 FLUTE 45° HELIX EXTRA LONG LENGTH D5/16 D1 1154 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5058 CARBIDE, 6 FLUTE 40° HELIX REGULAR LENGTH D3/16 D3/4 1155 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5056 CARBIDE, 5 FLUTE 45° HELIX STUB & REGULAR LENGTH
E5057 FINE PITCH ROUGHING CARBIDE D3/8 D1 1156 ○ ◎ ◎ ○ ◎ ○

E5077 CARBIDE, 3 FLUTE TAPER D3/32 D1/4 1157 ◎ ◎ ◎ ○ ○ ○ ○

E5078 CARBIDE, 3 FLUTE TAPER BALL NOSE R.047 R.125 1158 ◎ ◎ ◎ ○ ○ ○ ○

METRIC
EH527 CARBIDE, 2 FLUTE LONG LENGTH TiAlN ‘F’ COATED D3.5 D20.0 1159 ◎ ◎ ◎ ○ ○ ○ ○ ○

EH540 CARBIDE, 4 FLUTE LONG LENGTH TiAlN ‘F’ COATED D3.5 D20.0 1160 ◎ ◎ ◎ ○ ○ ○ ○ ○

EH882 CARBIDE, 3 FLUTE 35° HELIX CORNER RADIUS TiAlN ‘F’ COATED D3.0 D20.0 1161 ◎ ◎ ◎ ○ ○ ◎ ◎

RECOMMENDED CUTTING CONDITIONS 1163
