CARBIDE CARBIDE

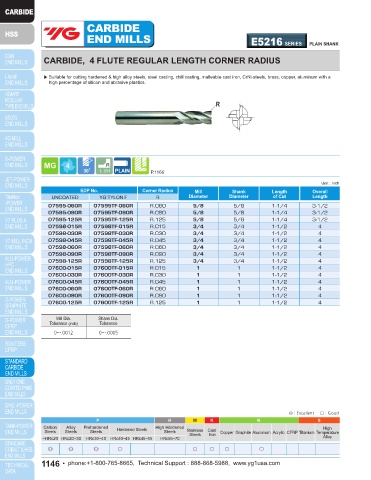

END MILLS E5216 SERIES PLAIN SHANK END MILLS E5069 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE REGULAR LENGTH CORNER RADIUS CARBIDE, 5 FLUTE 45° HELIX REGULAR LENGTH CORNER RADIUS

▶ Suitable for cutting hardened & high alloy steels, steel casting, chill casting, malleable cast iron, CrNi-steels, brass, copper, aluminum with a Designed to machine stainless steels, lnconols and other alloys.
high percentage of silicon and abrasive plastics. 5 Flute and 45° medium helix allow harmonic balance and smooth cutting.

R R
↙ ↙

P.1166 P.1162
Unit : Inch Unit : Inch
EDP No. Corner Radius Mill Shank Length Overall Corner Radius Mill Shank Length Overall
UNCOATED YG:TYLON F R Diameter Diameter of Cut Length EDP No. R Diameter Diameter of Cut Length
07595-060R 07595TF-060R R.060 5/8 5/8 1-1/4 3-1/2 86573TF-030R R.030 1/4 1/4 3/4 2-1/2
07595-090R 07595TF-090R R.090 5/8 5/8 1-1/4 3-1/2 86584TF-030R R.030 3/8 3/8 1 2-1/2
07595-125R 07595TF-125R R.125 5/8 5/8 1-1/4 3-1/2 86584TF-060R R.060 3/8 3/8 1 2-1/2
07598-015R 07598TF-015R R.015 3/4 3/4 1-1/2 4 86593TF-030R R.030 1/2 1/2 1-1/4 3
07598-030R 07598TF-030R R.030 3/4 3/4 1-1/2 4 86593TF-060R R.060 1/2 1/2 1-1/4 3
07598-045R 07598TF-045R R.045 3/4 3/4 1-1/2 4 86593TF-090R R.090 1/2 1/2 1-1/4 3
07598-060R 07598TF-060R R.060 3/4 3/4 1-1/2 4 86595TF-030R R.030 5/8 5/8 1-5/8 3-1/2
07598-090R 07598TF-090R R.090 3/4 3/4 1-1/2 4 86595TF-060R R.060 5/8 5/8 1-5/8 3-1/2
07598-125R 07598TF-125R R.125 3/4 3/4 1-1/2 4 86595TF-090R R.090 5/8 5/8 1-5/8 3-1/2
07600-015R 07600TF-015R R.015 1 1 1-1/2 4 86595TF-125R R.125 5/8 5/8 1-5/8 3-1/2
07600-030R 07600TF-030R R.030 1 1 1-1/2 4 86598TF-030R R.030 3/4 3/4 1-5/8 4
07600-045R 07600TF-045R R.045 1 1 1-1/2 4 86598TF-060R R.060 3/4 3/4 1-5/8 4
07600-060R 07600TF-060R R.060 1 1 1-1/2 4 86598TF-090R R.090 3/4 3/4 1-5/8 4
07600-090R 07600TF-090R R.090 1 1 1-1/2 4 86598TF-125R R.125 3/4 3/4 1-5/8 4
07600-125R 07600TF-125R R.125 1 1 1-1/2 4 86598TF-156R R.156 3/4 3/4 1-5/8 4
86598TF-187R R.187 3/4 3/4 1-5/8 4
Mill Dia. Shank Dia. 86600TF-030R R.030 1 1 2 4
Tolerance (inch) Tolerance 86600TF-060R R.060 1 1 2 4
86600TF-090R R.090 1 1 2 4
0~-.0012 0~-.0005
86600TF-125R R.125 1 1 2 4
86600TF-156R R.156 1 1 2 4
86600TF-187R R.187 1 1 2 4
Any non stocked radius available in 1 week for uncoated tools

Mill Dia. Shank Dia.
Tolerance (inch) Tolerance
0~-.0012 0~-.0005

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ◎ ○ ○ ○ ○ ○ ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○
