TANK-POWER TANK-POWER

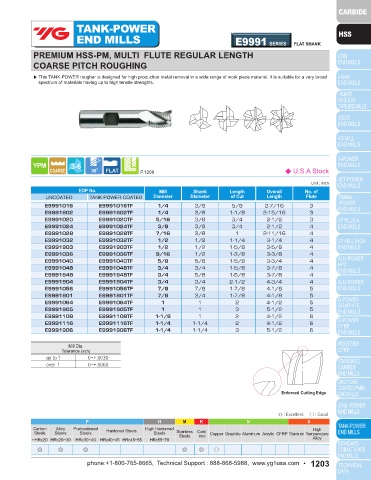

END MILLS E9990 SERIES FLAT SHANK END MILLS E9991 SERIES FLAT SHANK

PREMIUM HSS-PM, MULTI FLUTE REGULAR LENGTH PREMIUM HSS-PM, MULTI FLUTE REGULAR LENGTH
FINE PITCH ROUGHING COARSE PITCH ROUGHING

▶ This TANK-POWER rougher is designed for high production metal removal in a wide range of work piece material. It is suitable for a very broad ▶ This TANK-POWER rougher is designed for high production metal removal in a wide range of work piece material. It is suitable for a very broad
spectrum of materials having up to high tensile strengths. In many cases, the milled surfaces are of acceptable quality. spectrum of materials having up to high tensile strengths.

P.1208 ◆ U.S.A Stock P.1208 ◆ U.S.A Stock
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall No. of EDP No. Mill Shank Length Overall No. of
UNCOATED TANK-POWER COATED Diameter Diameter of Cut Length Flute UNCOATED TANK-POWER COATED Diameter Diameter of Cut Length Flute
E9990016 E9990016TF 1/4 3/8 5/8 2-7/16 3 E9991016 E9991016TF 1/4 3/8 5/8 2-7/16 3
E9990907 E9990907TF 1/4 3/8 1-1/8 2-15/16 3 E9991902 E9991902TF 1/4 3/8 1-1/8 2-15/16 3
E9990020 E9990020TF 5/16 3/8 3/4 2-1/2 3 E9991020 E9991020TF 5/16 3/8 3/4 2-1/2 3
E9990024 E9990024TF 3/8 3/8 3/4 2-1/2 4 E9991024 E9991024TF 3/8 3/8 3/4 2-1/2 4
E9990028 E9990028TF 7/16 3/8 1 2-11/16 4 E9991028 E9991028TF 7/16 3/8 1 2-11/16 4
E9990032 E9990032TF 1/2 1/2 1-1/4 3-1/4 4 E9991032 E9991032TF 1/2 1/2 1-1/4 3-1/4 4
E9990908 E9990908TF 1/2 1/2 1-5/8 3-5/8 4 E9991903 E9991903TF 1/2 1/2 1-5/8 3-5/8 4
E9990036 E9990036TF 9/16 1/2 1-3/8 3-3/8 4 E9991036 E9991036TF 9/16 1/2 1-3/8 3-3/8 4
E9990040 E9990040TF 5/8 5/8 1-5/8 3-3/4 4 E9991040 E9991040TF 5/8 5/8 1-5/8 3-3/4 4
E9990048 E9990048TF 3/4 3/4 1-5/8 3-7/8 4 E9991048 E9991048TF 3/4 3/4 1-5/8 3-7/8 4
E9990948 E9990948TF 3/4 5/8 1-5/8 3-7/8 4 E9991948 E9991948TF 3/4 5/8 1-5/8 3-7/8 4
E9990909 E9990909TF 3/4 3/4 2-1/2 4-3/4 4 E9991904 E9991904TF 3/4 3/4 2-1/2 4-3/4 4
E9990056 E9990056TF 7/8 7/8 1-7/8 4-1/8 5 E9991056 E9991056TF 7/8 7/8 1-7/8 4-1/8 5
E9990901 E9990901TF 7/8 3/4 1-7/8 4-1/8 5 E9991901 E9991901TF 7/8 3/4 1-7/8 4-1/8 5
E9990064 E9990064TF 1 1 2 4-1/2 5 E9991064 E9991064TF 1 1 2 4-1/2 5
E9990905 E9990905TF 1 1 3 5-1/2 5 E9991905 E9991905TF 1 1 3 5-1/2 5
E9990108 E9990108TF 1-1/8 1 2 4-1/2 6 E9991108 E9991108TF 1-1/8 1 2 4-1/2 6
E9990116 E9990116TF 1-1/4 1-1/4 2 4-1/2 6 E9991116 E9991116TF 1-1/4 1-1/4 2 4-1/2 6
E9990906 E9990906TF 1-1/4 1-1/4 3 5-1/2 6 E9991906 E9991906TF 1-1/4 1-1/4 3 5-1/2 6

Mill Dia. Mill Dia.
Tolerance (inch) Tolerance (inch)
up to 1 0~+.0030 up to 1 0~+.0030
over 1 0~+.0060 over 1 0~+.0060

Enforced Cutting Edge

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ◎ ◎ ◎ ○ ◎ ◎ ◎ ◎ ◎ ○
1202 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1203
