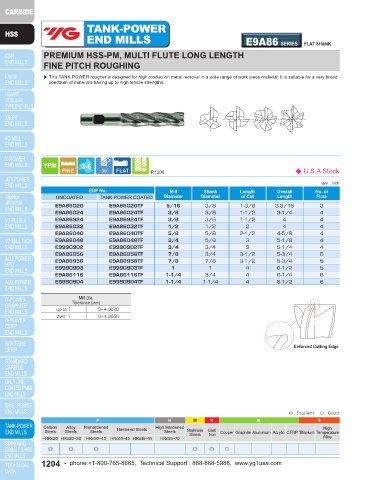

TANK-POWER TANK-POWER
END MILLS E9A86 SERIES FLAT SHANK END MILLS E9A87 SERIES FLAT SHANK

PREMIUM HSS-PM, MULTI FLUTE LONG LENGTH PREMIUM HSS-PM, MULTI FLUTE LONG LENGTH
FINE PITCH ROUGHING COARSE PITCH ROUGHING

▶ This TANK-POWER rougher is designed for high production metal removal in a wide range of work piece material. It is suitable for a very broad ▶ This TANK-POWER rougher is designed for high production metal removal in a wide range of work piece material. It is suitable for a very broad
spectrum of materials having up to high tensile strengths. spectrum of materials having up to high tensile strengths.

P.1208 ◆ U.S.A Stock P.1208 ◆ U.S.A Stock
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall No. of EDP No. Mill Shank Length Overall No. of
UNCOATED TANK-POWER COATED Diameter Diameter of Cut Length Flute UNCOATED TANK-POWER COATED Diameter Diameter of Cut Length Flute
E9A86020 E9A86020TF 5/16 3/8 1-3/8 3-3/16 3 E9A87020 E9A87020TF 5/16 3/8 1-3/8 3-3/16 3
E9A86024 E9A86024TF 3/8 3/8 1-1/2 3-1/4 4 E9A87024 E9A87024TF 3/8 3/8 1-1/2 3-1/4 4
E9A86924 E9A86924TF 3/8 3/8 1-1/2 4 4 E9A87924 E9A87924TF 3/8 3/8 1-1/2 4 4
E9A86032 E9A86032TF 1/2 1/2 2 4 4 E9A87032 E9A87032TF 1/2 1/2 2 4 4
E9A86040 E9A86040TF 5/8 5/8 2-1/2 4-5/8 4 E9A87040 E9A87040TF 5/8 5/8 2-1/2 4-5/8 4
E9A86048 E9A86048TF 3/4 5/8 3 5-1/8 4 E9A87048 E9A87048TF 3/4 5/8 3 5-1/8 4
E9990902 E9990902TF 3/4 3/4 3 5-1/4 4 E9A87948 E9A87948TF 3/4 3/4 3 5-1/4 4
E9A86056 E9A86056TF 7/8 3/4 3-1/2 5-3/4 5 E9A87056 E9A87056TF 7/8 3/4 3-1/2 5-3/4 5
E9A86956 E9A86956TF 7/8 7/8 3-1/2 5-3/4 5 E9A87956 E9A87956TF 7/8 7/8 3-1/2 5-3/4 5
E9990903 E9990903TF 1 1 4 6-1/2 5 E9A87064 E9A87064TF 1 1 4 6-1/2 5
E9A86116 E9A86116TF 1-1/4 3/4 4 6-1/4 6 E9A87116 E9A87116TF 1-1/4 3/4 4 6-1/4 6
E9990904 E9990904TF 1-1/4 1-1/4 4 6-1/2 6 E9A87917 E9A87917TF 1-1/4 1-1/4 4 6-1/2 6

Mill Dia. Mill Dia.
Tolerance (inch) Tolerance (inch)
up to 1 0~+.0030 up to 1 0~+.0030
over 1 0~+.0060 over 1 0~+.0060

Enforced Cutting Edge Enforced Cutting Edge

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ◎ ◎ ◎ ○ ◎ ◎ ◎ ◎ ◎ ○
