ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

BT BT

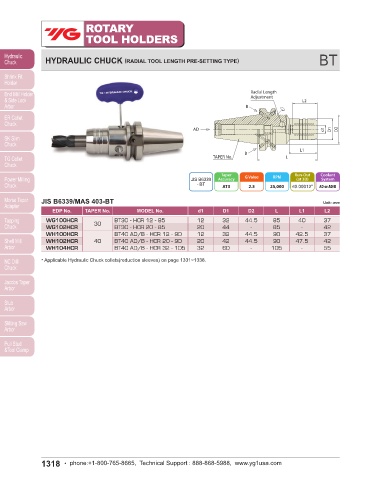

HYDRAULIC CHUCK (RADIAL TOOL LENGTH PRE-SETTING TYPE) HYDRAULIC CHUCK (For MOULD)

Radial Length L2
Adjustment G
L2
B 3°

d1 D1 D2
AD d1 D1 D2
TAPER No. L1
L
L1
B
TAPER No. L
Taper G Value RPM Run-Out Coolant
Taper Run-Out Coolant JIS B6339 Accuracy (at 3D) System
JIS B6339 Accuracy G Value RPM (at 3D) System - BT
- BT AT3 2.5 25,000 ≤0.00012" AD or AD/B AT3 2.5 25,000 ≤0.00012" AD/B
JIS B6339/MAS 403-BT Unit : mm
JIS B6339/MAS 403-BT Unit : mm EDP No. TAPER No. MODEL No. d1 D1 D2 L L1 L2 G

EDP No. TAPER No. MODEL No. d1 D1 D2 L L1 L2 WH100HMC BT40 AD/B - HMC 6 - 120 6 20 44.5 120 70 27 M5×0.8
WG100HCR 30 BT30 - HCR 12 - 85 12 32 44.5 85 40 37 WH102HMC BT40 AD/B - HMC 6 - 150 6 20 44.5 150 100 27 M5×0.8
WG102HCR BT30 - HCR 20 - 85 20 44 - 85 - 42 WH104HMC BT40 AD/B - HMC 8 - 120 8 22 44.5 120 70 27 M6×1.0
WH100HCR BT40 AD/B - HCR 12 - 90 12 32 44.5 90 42.5 37
WH102HCR 40 BT40 AD/B - HCR 20 - 90 20 42 44.5 90 47.5 42 WH106HMC BT40 AD/B - HMC 8 - 150 8 22 44.5 150 100 27 M6×1.0
WH104HCR BT40 AD/B - HCR 32 - 105 32 60 - 105 - 55 WH108HMC BT40 AD/B - HMC 10 - 120 10 24 44.5 120 70 32 M8×1.0
WH110HMC BT40 AD/B - HMC 10 - 150 10 24 44.5 150 100 32 M8×1.0
* Applicable Hydraulic Chuck collets(reduction sleeves) on page 1331~1338. 40
WH112HMC BT40 AD/B - HMC 12 - 120 12 25 44.5 120 70 37 M10×1.0
WH114HMC BT40 AD/B - HMC 12 - 150 12 25 44.5 150 100 37 M10×1.0
WH116HMC BT40 AD/B - HMC 16 - 120 16 32 44.5 120 70 42 M12×1.0
WH118HMC BT40 AD/B - HMC 16 - 150 16 32 44.5 150 100 42 M12×1.0
WH120HMC BT40 AD/B - HMC 20 - 120 20 36 43.75 120 - 42 M16×1.0
WH122HMC BT40 AD/B - HMC 20 - 150 20 36 46.9 150 - 42 M16×1.0

* Applicable Hydraulic Chuck collets(reduction sleeves) on page 1331~1338.
