Page 1318 - YG 2019

ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

CCT CCT

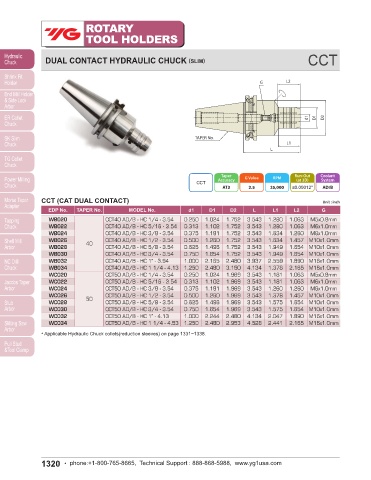

DUAL CONTACT HYDRAULIC CHUCK (SLIM) HYDRAULIC CHUCK (Power E Hydro)

G L2
G L2

d1 D1 D2
d1 D1 D2

TAPER No.
L1 TAPER No. L
L

Taper Run-Out Coolant
Accuracy G Value RPM (at 3D) System
CCT
Taper G Value RPM Run-Out Coolant AT3 2.5 25,000 ≤0.00012" AD/B
Accuracy (at 3D) System
CCT
AT3 2.5 25,000 ≤0.00012" AD/B CCT (CAT DUAL CONTACT) Unit : inch
CCT (CAT DUAL CONTACT) Unit : inch EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G
EDP No. TAPER No. MODEL No. d1 D1 D2 L L1 L2 G WB030PE 40 CCT40 AD/B - HC 3/4P - 2.539 0.75 1.496 49.25 2.539 1.889 M8x1.0mm
WB031PE CCT40 AD/B - HC 3/4P - 4.000 0.75 1.496 49.25 4.000 1.889 M8x1.0mm
WB020 CCT40 AD/B - HC 1/4 - 3.54 0.250 1.024 1.752 3.543 1.280 1.063 M5x0.8mm
WB022 CCT40 AD/B - HC 5/16 - 3.54 0.313 1.102 1.752 3.543 1.280 1.063 M6x1.0mm Unit : mm
WB024 CCT40 AD/B - HC 3/8 - 3.54 0.375 1.181 1.752 3.543 1.634 1.260 M8x1.0mm EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G
WB026 CCT40 AD/B - HC 1/2 - 3.54 0.500 1.260 1.752 3.543 1.634 1.457 M10x1.0mm WB130PE CCT40 AD/B - HC 20P - 64.5 20 38 49.25 64.5 48 M8x1.0
WB028 40 CCT40 AD/B - HC 5/8 - 3.54 0.625 1.496 1.752 3.543 1.949 1.654 M10x1.0mm WB131PE 40 CCT40 AD/B - HC 20P - 101.6 20 38 49.25 101.6 48 M8x1.0
WB030 CCT40 AD/B - HC 3/4 - 3.54 0.750 1.654 1.752 3.543 1.949 1.654 M10x1.0mm
WB032 CCT40 AD/B - HC 1" - 3.94 1.000 2.165 2.480 3.937 2.559 1.890 M16x1.0mm * High Clamping Torque Power version
WB034 CCT40 AD/B - HC 1 1/4 - 4.13 1.250 2.480 3.150 4.134 1.378 2.165 M16x1.0mm (Please refer to page 1420, Technical Information)
WC020 CCT50 AD/B - HC 1/4 - 3.54 0.250 1.024 1.969 3.543 1.181 1.063 M5x0.8mm * Applicable for milling(roughing and finishing)
* Applicable Hydraulic Chuck collets(reduction sleeves) on page 1331~1338.
WC022 CCT50 AD/B - HC 5/16 - 3.54 0.313 1.102 1.969 3.543 1.181 1.063 M6x1.0mm
WC024 CCT50 AD/B - HC 3/8 - 3.54 0.375 1.181 1.969 3.543 1.260 1.260 M8x1.0mm
WC026 50 CCT50 AD/B - HC 1/2 - 3.54 0.500 1.260 1.969 3.543 1.378 1.457 M10x1.0mm
WC028 CCT50 AD/B - HC 5/8 - 3.54 0.625 1.496 1.969 3.543 1.575 1.654 M10x1.0mm
WC030 CCT50 AD/B - HC 3/4 - 3.54 0.750 1.654 1.969 3.543 1.575 1.654 M10x1.0mm
WC032 CCT50 AD/B - HC 1" - 4.13 1.000 2.244 2.480 4.134 2.047 1.890 M16x1.0mm
WC034 CCT50 AD/B - HC 1 1/4 - 4.53 1.250 2.480 2.953 4.528 2.441 2.165 M16x1.0mm
* Applicable Hydraulic Chuck collets(reduction sleeves) on page 1331~1338.
