ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

CAT/BT NC

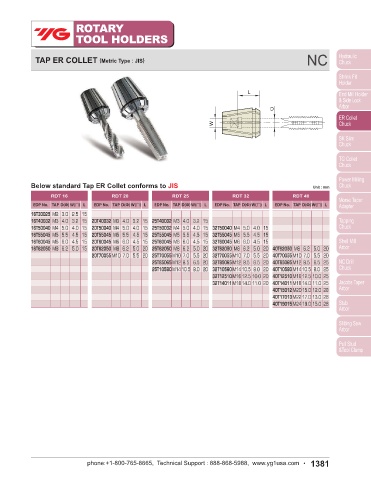

TAP ER COLLET (Inch Type : ANSI) TAP ER COLLET (Metric Type : JIS)

Below standard Tap ER Collet conforms to ANSI (For PIPE TAPS) Unit : inch Below standard Tap ER Collet conforms to JIS Unit : mm

RD 16TCP RD 20TCP RD 25TCP RDT 16 RDT 20 RDT 25 RDT 32 RDT 40
TAP TAP TAP EDP No. TAP D(Φ) W(□) L EDP No. TAP D(Φ) W(□) L EDP No. TAP D(Φ) W(□) L EDP No. TAP D(Φ) W(□) L EDP No. TAP D(Φ) W(□) L
EDP No. D(Φ) W(□) L EDP No. D(Φ) W(□) L EDP No. D(Φ) W(□) L
Inch Metric Inch Metric Inch Metric 16T30025 M2 3.0 2.5 15
16TP3123 1/8(SS) - 0.312 0.234 0.709 20TP3123 1/8(SS) - 0.312 0.234 0.787 25TP3123 1/8(SS) - 0.312 0.234 0.787 16T40032 M3 4.0 3.2 15 20T40032 M3 4.0 3.2 15 25T40032 M3 4.0 3.2 15
16TP4332 1/8(LS) - 0.437 0.328 0.709 20TP4332 1/8(LS) - 0.437 0.328 0.787 25TP4332 1/8(LS) - 0.437 0.328 0.787 16T50040 M4 5.0 4.0 15 20T50040 M4 5.0 4.0 15 25T50032 M4 5.0 4.0 15 32T50040 M4 5.0 4.0 15
25TP5642 1/4 - 0.562 0.420 0.787 16T55045 M5 5.5 4.5 15 20T55045 M5 5.5 4.5 15 25T55045 M5 5.5 4.5 15 32T55045 M5 5.5 4.5 15
16T60045 M6 6.0 4.5 15 20T60045 M6 6.0 4.5 15 25T60045 M6 6.0 4.5 15 32T60045 M6 6.0 4.5 15
16T62050 M8 6.2 5.0 15 20T62050 M8 6.2 5.0 20 25T62050 M8 6.2 5.0 20 32T62050 M8 6.2 5.0 20 40T62050 M8 6.2 5.0 20
RD 32TCP RD 40TCP 20T70055M10 7.0 5.5 20 25T70055M10 7.0 5.5 20 32T70055M10 7.0 5.5 20 40T70055M10 7.0 5.5 20
TAP TAP 25T85065M12 8.5 6.5 20 32T85065M12 8.5 6.5 20 40T85065M12 8.5 6.5 25
EDP No. D(Φ) W(□) L EDP No. D(Φ) W(□) L 25T10580M14 10.5 8.0 20 32T10560M14 10.5 8.0 20 40T10580M14 10.5 8.0 25
Inch Metric Inch Metric
32T12510M16 12.5 10.0 20 40T12510M16 12.5 10.0 25
32TP3123 1/8(SS) - 0.312 0.234 0.787 40TP3123 1/8(SS) - 0.312 0.234 0.787 32T14011M18 14.0 11.0 20 40T14011M18 14.0 11.0 25
32TP4332 1/8(LS) - 0.437 0.328 0.787 40TP4332 1/8(LS) - 0.437 0.328 0.787 40T15012M20 15.0 12.0 28
32TP5642 1/4 - 0.562 0.420 0.787 40TP5642 1/4 - 0.562 0.420 0.787 40T17013M22 17.0 13.0 28
40TP7053 3/8 - 0.700 0.530 0.866 40T19015M24 19.0 15.0 28
40TP6851 1/2 - 0.687 0.515 0.866
40TP9067 3/4 - 0.906 0.679 0.945

* SS : Short Series / LS : Long Series
