ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

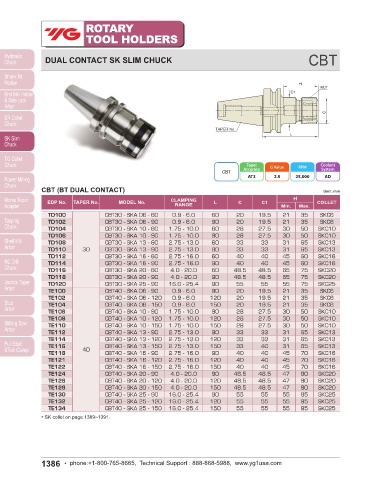

DUAL CONTACT SK SLIM CHUCK CBT DUAL CONTACT SK SLIM CHUCK HSK

H
H
C1 NUT
D1 RANGE

C
D
TAPER No.
L
TAPER No. L

Taper Coolant Taper Coolant
Accuracy G Value RPM System DIN 69893 Accuracy G Value RPM System
CBT - HSK
AT3 2.5 25,000 AD - 2.5 25,000 AD
CBT (BT DUAL CONTACT) Unit : mm DIN 69893/ISO 12164-1-HSK FORM A Unit : mm

EDP No. TAPER No. MODEL No. CLAMPING L C C1 Min. H Max. COLLET EDP No. TAPER No. MODEL No. CLAMPING D D1 L Min. H Max. COLLET
RANGE
RANGE
TD100 CBT30 - SKA 06 - 60 0.9 - 6.0 60 20 19.5 21 35 SKC6 TQ100 HSK63A - SKA 06 - 100 0.75 - 6.0 20 19.5 100 21 35 SKC6
TD102 CBT30 - SKA 06 - 90 0.9 - 6.0 90 20 19.5 21 35 SKC6 TQ102 HSK63A - SKA 10 - 100 1.75 - 10.0 28 27.5 100 30 50 SKC10
TD104 CBT30 - SKA 10 - 60 1.75 - 10.0 60 28 27.5 30 50 SKC10 TQ104 HSK63A - SKA 13 - 100 2.75 - 13.0 33 33 100 31 65 SKC13
TD106 CBT30 - SKA 10 - 90 1.75 - 10.0 90 28 27.5 30 50 SKC10 TQ106 63A HSK63A - SKA 16 - 120 2.75 - 16.0 40 40 120 45 70 SKC16
TD108 CBT30 - SKA 13 - 60 2.75 - 13.0 60 33 33 31 65 SKC13 TQ108 HSK63A - SKA 20 - 120 4.0 - 20.0 48.5 48.5 120 65 75 SKC20
TD110 30 CBT30 - SKA 13 - 90 2.75 - 13.0 90 33 33 31 65 SKC13 TQ110 HSK63A - SKA 25 - 150 16.0 - 25.4 55 55 150 55 85 SKC25
TD112 CBT30 - SKA 16 - 60 2.75 - 16.0 60 40 40 45 60 SKC16 TR100 HSK100A - SKA 06 - 120 0.75 - 6.0 20 19.5 120 21 35 SKC6
TD114 CBT30 - SKA 16 - 90 2.75 - 16.0 90 40 40 45 60 SKC16 TR102 HSK100A - SKA 10 - 150 1.75 - 10.0 28 27.5 150 30 50 SKC10
TD116 CBT30 - SKA 20 - 60 4.0 - 20.0 60 48.5 48.5 65 75 SKC20 TR104 HSK100A - SKA 13 - 150 2.75 - 13.0 33 40 150 31 65 SKC13
TD118 CBT30 - SKA 20 - 90 4.0 - 20.0 90 48.5 48.5 65 75 SKC20 TR106 100A HSK100A - SKA 16 - 150 2.75 - 16.0 40 40 150 45 70 SKC16
TD120 CBT30 - SKA 25 - 90 16.0 - 25.4 90 55 55 55 75 SKC25 TR108 HSK100A - SKA 20 - 150 4.0 - 20.0 48.5 48.5 150 65 75 SKC20
TE100 CBT40 - SKA 06 - 90 0.9 - 6.0 90 20 19.5 21 35 SKC6 TR110 HSK100A - SKA 25 - 160 16.0 - 25.4 55 55 160 55 85 SKC25
TE102 CBT40 - SKA 06 - 120 0.9 - 6.0 120 20 19.5 21 35 SKC6 * SK collet on page 1389~1391.
TE104 CBT40 - SKA 06 - 150 0.9 - 6.0 150 20 19.5 21 35 SKC6
TE106 CBT40 - SKA 10 - 90 1.75 - 10.0 90 28 27.5 30 50 SKC10
TE108 CBT40 - SKA 10 - 120 1.75 - 10.0 120 28 27.5 30 50 SKC10
TE110 CBT40 - SKA 10 - 150 1.75 - 10.0 150 28 27.5 30 50 SKC10
TE112 CBT40 - SKA 13 - 90 2.75 - 13.0 90 33 33 31 65 SKC13
TE114 CBT40 - SKA 13 - 120 2.75 - 13.0 120 33 33 31 65 SKC13
TE116 CBT40 - SKA 13 - 150 2.75 - 13.0 150 33 40 31 65 SKC13
TE118 40 CBT40 - SKA 16 - 90 2.75 - 16.0 90 40 40 45 70 SKC16
TE121 CBT40 - SKA 16 - 120 2.75 - 16.0 120 40 40 45 70 SKC16
TE122 CBT40 - SKA 16 - 150 2.75 - 16.0 150 40 40 45 70 SKC16
TE124 CBT40 - SKA 20 - 90 4.0 - 20.0 90 48.5 48.5 47 80 SKC20
TE126 CBT40 - SKA 20 - 120 4.0 - 20.0 120 48.5 48.5 47 80 SKC20
TE128 CBT40 - SKA 20 - 150 4.0 - 20.0 150 48.5 48.5 47 80 SKC20
TE130 CBT40 - SKA 25 - 90 16.0 - 25.4 90 55 55 55 85 SKC25
TE132 CBT40 - SKA 25 - 120 16.0 - 25.4 120 55 55 55 85 SKC25
TE134 CBT40 - SKA 25 - 150 16.0 - 25.4 150 55 55 55 85 SKC25
* SK collet on page 1389~1391.
