ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

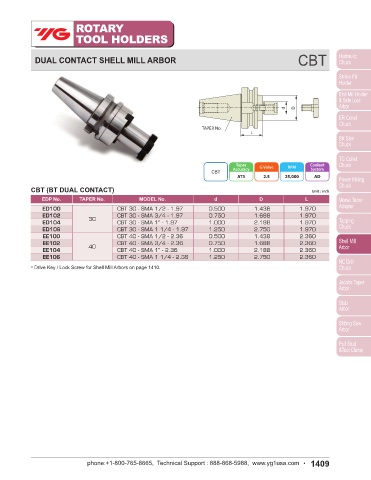

DUAL CONTACT SHELL MILL ARBOR CCT DUAL CONTACT SHELL MILL ARBOR CBT

d D
d D

TAPER No. TAPER No. L
L

Taper Coolant Taper Coolant
Accuracy G Value RPM System Accuracy G Value RPM System
CCT CBT
AT3 2.5 25,000 AD/B AT3 2.5 25,000 AD
CCT (CAT DUAL CONTACT) Unit : inch CBT (BT DUAL CONTACT) Unit : inch
EDP No. TAPER No. MODEL No. d D L EDP No. TAPER No. MODEL No. d D L
EB020 CCT40 AD/B - SMA 1/2 - 2.36 0.500 1.438 2.360 ED100 CBT 30 - SMA 1/2 - 1.97 0.500 1.438 1.970
EB022 CCT40 AD/B - SMA 1/2 - 4.72 0.500 1.438 4.720 ED102 30 CBT 30 - SMA 3/4 - 1.97 0.750 1.688 1.970
EB024 CCT40 AD/B - SMA 3/4 - 2.36 0.750 1.688 2.360 ED104 CBT 30 - SMA 1" - 1.97 1.000 2.188 1.970
EB026 40 CCT40 AD/B - SMA 3/4 - 4.72 0.750 1.688 4.720 ED106 CBT 30 - SMA 1 1/4 - 1.97 1.250 2.750 1.970
EB028 CCT40 AD/B - SMA 1" - 2.36 1.000 2.188 2.360 EE100 CBT 40 - SMA 1/2 - 2.36 0.500 1.438 2.360
EB030 CCT40 AD/B - SMA 1" - 4.72 1.000 2.188 4.720 EE102 CBT 40 - SMA 3/4 - 2.36 0.750 1.688 2.360
EB032 CCT40 AD/B - SMA 1 1/4 - 2.36 1.250 2.750 2.360 EE104 40 CBT 40 - SMA 1" - 2.36 1.000 2.188 2.360
EB034 CCT40 AD/B - SMA 1 1/4 - 4.72 1.250 2.750 4.720 EE106 CBT 40 - SMA 1 1/4 - 2.36 1.250 2.750 2.360
EC020 CCT50 AD/B - SMA 1/2 - 2.95 0.500 1.438 2.950
EC022 CCT50 AD/B - SMA 1/2 - 4.72 0.500 1.438 4.720 * Drive Key / Lock Screw for Shell Mill Arbors on page 1410.
EC024 CCT50 AD/B - SMA 3/4 - 2.95 0.750 1.688 2.950
EC026 CCT50 AD/B - SMA 3/4 - 4.72 0.750 1.688 4.720
EC028 50 CCT50 AD/B - SMA 1" - 2.95 1.000 2.188 2.950
EC030 CCT50 AD/B - SMA 1" - 4.72 1.000 2.188 4.720
EC032 CCT50 AD/B - SMA 1 1/4 - 2.95 1.250 2.750 2.950
EC034 CCT50 AD/B - SMA 1 1/4 - 4.72 1.250 2.750 4.720
EC036 CCT50 AD/B - SMA 1 1/2 - 2.95 1.500 3.813 2.950
EC038 CCT50 AD/B - SMA 1 1/2 - 4.72 1.500 3.813 4.720
* Drive Key / Lock Screw for Shell Mill Arbors on page 1410.
