ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

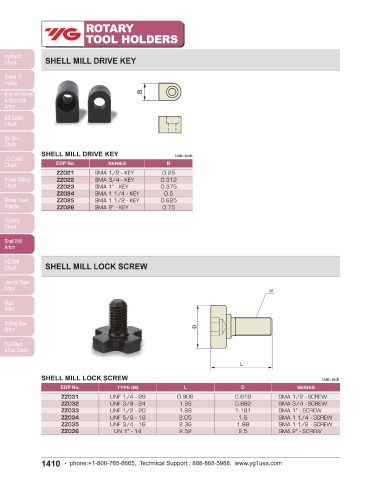

SHELL MILL DRIVE KEY NC DRILL CHUCK CAT

D

L
L1
SHELL MILL DRIVE KEY Unit : inch
EDP No. SERIES B Taper Coolant
ASME Accuracy G Value RPM System
ZZ021 SMA 1/2 - KEY 0.25 B5.50
ZZ022 SMA 3/4 - KEY 0.312 - CAT AT3 - - -
ZZ023 SMA 1" - KEY 0.375 ASME B5.50-2009-CAT
ZZ024 SMA 1 1/4 - KEY 0.5 Unit : inch
ZZ025 SMA 1 1/2 - KEY 0.625 EDP No. TAPER No. MODEL No. RANGE D L L1
ZZ026 SMA 2" - KEY 0.75 RK020 CAT 40 - NPU8 - 2.95 0.012 - 0.315 1.437 2.950 3.174
RK022 CAT 40 - NPU8 - 4.33 0.012 - 0.315 1.437 4.331 4.555
RK024 CAT 40 - NPU8 - 5.91 0.012 - 0.315 1.437 5.906 6.130
RK026 40 CAT 40 - NPU13 - 3.54 0.039 - 0.512 1.984 3.543 3.937
RK028 CAT 40 - NPU13 - 5.12 0.039 - 0.512 1.984 5.118 5.512
RK030 CAT 40 - NPU13 - 5.91 0.039 - 0.512 1.984 5.906 6.299
RL020 CAT 50 - NPU8 - 3.54 0.012 - 0.315 1.437 3.543 3.768
RL022 CAT 50 - NPU8 - 4.33 0.012 - 0.315 1.437 4.331 4.555
SHELL MILL LOCK SCREW RL024 CAT 50 - NPU8 - 6.69 0.012 - 0.315 1.437 6.693 6.917
RL026 50 CAT 50 - NPU13 - 3.94 0.039 - 0.512 1.984 3.937 4.331
RL028 CAT 50 - NPU13 - 5.12 0.039 - 0.512 1.984 5.118 5.512
RL030 CAT 50 - NPU13 - 5.91 0.039 - 0.512 1.984 5.906 6.299
RL032 CAT 50 - NPU13 - 6.69 0.039 - 0.512 1.984 6.693 7.087

SHELL MILL LOCK SCREW Unit : inch
EDP No. TYPE (M) L D SERIES
ZZ031 UNF 1/4 - 28 0.906 0.618 SMA 1/2 - SCREW
ZZ032 UNF 3/8 - 24 1.26 0.882 SMA 3/4 - SCREW
ZZ033 UNF 1/2 - 20 1.69 1.181 SMA 1" - SCREW
ZZ034 UNF 5/8 - 18 2.05 1.5 SMA 1 1/4 - SCREW
ZZ035 UNF 3/4 - 16 2.36 1.88 SMA 1 1/2 - SCREW
ZZ036 UN 1" - 14 2.52 2.5 SMA 2" - SCREW
