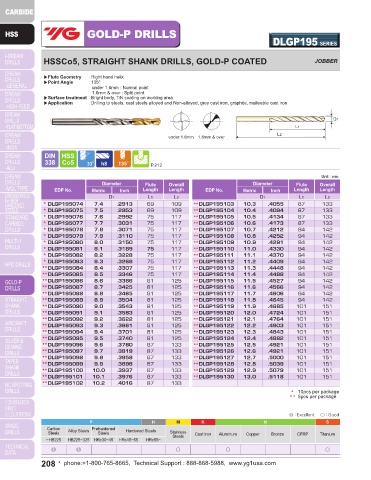

Page 208 - YG 2019

GOLD-P DRILLS GOLD-P DRILLS

DLGP195 SERIES DLGP506 SERIES
HSSCo5, STRAIGHT SHANK PARABOLIC FLUTE,
HSSCo5, STRAIGHT SHANK DRILLS, GOLD-P COATED JOBBER GOLD-P COATED JOBBER

▶Flute Geometry : Right hand helix ▶Flute Geometry : Right hand, 38° helix, Parabolic flutes
▶Point Angle : 135° ▶Point Angle : 130˚, Split point giving higher chip removal.
under 1.6mm : Normal point ▶Surface treatment : Bright body, TiN coating on working area.
1.6mm & over : Split point ▶Application : Drilling deep holes in non alloy steels, alloy steels, grey cast iron, malleable cast iron,
▶Surface treatment : Bright body, TiN coating on working area Special aluminum or magnesium alloys.
▶Application : Drilling to steels, cast steels alloyed and Non-alloyed, grey cast iron, graphite, malleable cast iron

D1
D1
L1
L1
under 1.6mm 1.6mm & over L2 L2

HSS HSS
Co5 135 P.212 Co5 130 P.213

Unit : mm Unit : mm
Diameter Flute Overall Diameter Flute Overall Diameter Flute Overall Diameter Flute Overall
Overall
Length
EDP No. Metric Inch Length Length EDP No. Metric Inch Length Length EDP No. Metric Inch Length Length EDP No. Metric Inch Length Length
D1 L1 L2 D1 L1 L2 L2 D1 L1 L2 D1 L1 L2
* DLGP195074 7.4 .2913 69 109 ** DLGP195103 10.3 .4055 87 133 * DLGP506020 2.0 .0787 24 49 * DLGP506048 4.8 .1890 52 86
* DLGP195075 7.5 .2953 69 109 ** DLGP195104 10.4 .4094 87 133 * DLGP506021 2.1 .0827 24 49 * DLGP506049 4.9 .1929 52 86
* DLGP195076 7.6 .2992 75 117 ** DLGP195105 10.5 .4134 87 133 * DLGP506022 2.2 .0866 27 53 * DLGP506050 5.0 .1969 52 86
* DLGP195077 7.7 .3031 75 117 ** DLGP195106 10.6 .4173 87 133 * DLGP506023 2.3 .0906 27 53 * DLGP506051 5.1 .2008 52 86
* DLGP195078 7.8 .3071 75 117 ** DLGP195107 10.7 .4212 94 142 * DLGP506024 2.4 .0945 30 57 * DLGP506052 5.2 .2047 52 86
* DLGP195079 7.9 .3110 75 117 ** DLGP195108 10.8 .4252 94 142 * DLGP506025 2.5 .0984 30 57 * DLGP506053 5.3 .2087 52 86
* DLGP195080 8.0 .3150 75 117 ** DLGP195109 10.9 .4291 94 142 DLGP506026 2.6 .1024 30 57 DLGP506054 5.4 .2126 57 93
* DLGP195081 8.1 .3189 75 117 ** DLGP195110 11.0 .4330 94 142 * *
* DLGP195082 8.2 .3228 75 117 ** DLGP195111 11.1 .4370 94 142 * DLGP506027 2.7 .1063 33 61 * DLGP506055 5.5 .2165 57 93
* DLGP195083 8.3 .3268 75 117 ** DLGP195112 11.2 .4409 94 142 * DLGP506028 2.8 .1102 33 61 * DLGP506056 5.6 .2205 57 93
** DLGP195084 8.4 .3307 75 117 ** DLGP195113 11.3 .4448 94 142 * DLGP506029 2.9 .1142 33 61 * DLGP506057 5.7 .2244 57 93
** DLGP195085 8.5 .3346 75 117 ** DLGP195114 11.4 .4488 94 142 * DLGP506030 3.0 .1181 33 61 * DLGP506058 5.8 .2283 57 93
** DLGP195086 8.6 .3386 81 125 ** DLGP195115 11.5 .4527 94 142 * DLGP506031 3.1 .1220 36 65 * DLGP506059 5.9 .2323 57 93
** DLGP195087 8.7 .3425 81 125 ** DLGP195116 11.6 .4566 94 142 * DLGP506032 3.2 .1260 36 65 * DLGP506060 6.0 .2362 57 93
** DLGP195088 8.8 .3465 81 125 ** DLGP195117 11.7 .4606 94 142 * DLGP506033 3.3 .1299 36 65 * DLGP506061 6.1 .2402 63 101
** DLGP195089 8.9 .3504 81 125 ** DLGP195118 11.8 .4645 94 142 * DLGP506034 3.4 .1339 39 70 * DLGP506062 6.2 .2441 63 101
** DLGP195090 9.0 .3543 81 125 ** DLGP195119 11.9 .4685 101 151 * DLGP506035 3.5 .1378 39 70 * DLGP506063 6.3 .2480 63 101
** DLGP195091 9.1 .3583 81 125 ** DLGP195120 12.0 .4724 101 151 * DLGP506036 3.6 .1417 39 70 * DLGP506064 6.4 .2520 63 101
** DLGP195092 9.2 .3622 81 125 ** DLGP195121 12.1 .4764 101 151 * DLGP506037 3.7 .1457 39 70 * DLGP506065 6.5 .2559 63 101
** DLGP195093 9.3 .3661 81 125 ** DLGP195122 12.2 .4803 101 151 DLGP506038 3.8 .1496 DLGP506066 6.6 .2598
** DLGP195094 9.4 .3701 81 125 ** DLGP195123 12.3 .4843 101 151 * 43 75 * 63 101
** DLGP195095 9.5 .3740 81 125 ** DLGP195124 12.4 .4882 101 151 * DLGP506039 3.9 .1535 43 75 * DLGP506067 6.7 .2638 63 101
** DLGP195096 9.6 .3780 87 133 ** DLGP195125 12.5 .4921 101 151 * DLGP506040 4.0 .1575 43 75 * DLGP506068 6.8 .2677 69 109
** DLGP195097 9.7 .3819 87 133 ** DLGP195126 12.6 .4921 101 151 * DLGP506041 4.1 .1614 43 75 * DLGP506069 6.9 .2717 69 109
** DLGP195098 9.8 .3858 87 133 ** DLGP195127 12.7 .5000 101 151 * DLGP506042 4.2 .1654 43 75 * DLGP506070 7.0 .2756 69 109
** DLGP195099 9.9 .3898 87 133 ** DLGP195128 12.8 .5039 101 151 * DLGP506043 4.3 .1693 47 80 * DLGP506071 7.1 .2795 69 109
** DLGP195100 10.0 .3937 87 133 ** DLGP195129 12.9 .5079 101 151 * DLGP506044 4.4 .1732 47 80 * DLGP506072 7.2 .2835 69 109
** DLGP195101 10.1 .3976 87 133 ** DLGP195130 13.0 .5118 101 151 * DLGP506045 4.5 .1772 47 80 * DLGP506073 7.3 .2874 69 109
** DLGP195102 10.2 .4016 87 133 * DLGP506046 4.6 .1811 47 80 * DLGP506074 7.4 .2913 69 109
* 10pcs per package * DLGP506047 4.7 .1850 47 80 * DLGP506075 7.5 .2953 69 109
** 5pcs per package
* 10pcs per package
▶ NEXT PAGE
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Prehardened Carbon Prehardened
Steels Alloy Steels Steels Hardened Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium Steels Alloy Steels Steels Hardened Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium
Steels
Steels
~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~ ~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~
◎ ◎ ○ ○ ○ ◎ ◎ ○
