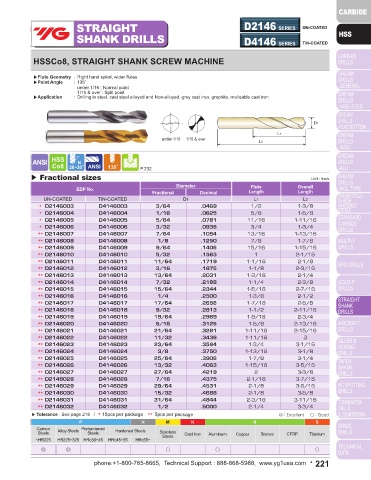

STRAIGHT STRAIGHT D2146 SERIES UN-COATED
SHANK DRILLS D1119 SERIES SHANK DRILLS D4146 SERIES TiN-COATED

HSS, STRAIGHT SHANK SCREW MACHINE HSSCo8, STRAIGHT SHANK SCREW MACHINE

▶Flute Geometry : Right hand spiral, wider flutes ▶Flute Geometry : Right hand spiral, wider flutes
▶Point Angle : 135° : Split point ▶Point Angle : 135˚
Wire gauge size #53~#60 : Normal point under 1/16 : Normal point
Wire gauge size #1~#52 : Split point 1/16 & over : Split point
▶Application : Drilling in steel, cast steel alloyed and Non-alloyed, grey cast iron, graphite, malleable cast iron ▶Application : Drilling in steel, cast steel alloyed and Non-alloyed, grey cast iron, graphite, malleable cast iron

D1 D1
L1
L1
#53~#60 #1~#52 L2 under 1/16 1/16 & over
L2

135 P.232 135 P.232
▶ Wire gauge sizes Unit : Inch ▶ Fractional sizes Unit : Inch

Diameter Flute Overall Diameter Flute Overall Diameter Flute Overall
EDP No. Wire gauge Decimal Length Length EDP No. Wire gauge Decimal Length Length EDP No. Fractional Decimal Length Length
D1 L1 L2 D1 L1 L2 UN-COATED TiN-COATED D1 L1 L2
* D1119201 1 .2280 1-5/16 2-7/16 * D1119231 31 .1200 7/8 1-7/8 * D2146003 D4146003 3/64 .0469 1/2 1-3/8
* D1119202 2 .2210 1-5/16 2-7/16 * D1119232 32 .1160 7/8 1-7/8 * D2146004 D4146004 1/16 .0625 5/8 1-5/8
* D1119203 3 .2130 1-1/4 2-3/8 * D1119233 33 .1130 7/8 1-7/8 * D2146005 D4146005 5/64 .0781 11/16 1-11/16
* D1119204 4 .2090 1-1/4 2-3/8 * D1119234 34 .1110 7/8 1-7/8 * D2146006 D4146006 3/32 .0938 3/4 1-3/4
* D1119205 5 .2055 1-1/4 2-3/8 * D1119235 35 .1100 7/8 1-7/8 ** D2146007 D4146007 7/64 .1094 13/16 1-13/16
* D1119206 6 .2040 1-1/4 2-3/8 * D1119236 36 .1065 13/16 1-13/16 ** D2146008 D4146008 1/8 .1250 7/8 1-7/8
* D1119207 7 .2010 1-3/16 2-1/4 * D1119237 37 .1040 13/16 1-13/16 ** D2146009 D4146009 9/64 .1406 15/16 1-15/16
* D1119208 8 .1990 1-3/16 2-1/4 * D1119238 38 .1015 13/16 1-13/16 ** D2146010 D4146010 5/32 .1563 1 2-1/16
* D1119209 9 .1960 1-3/16 2-1/4 * D1119239 39 .0995 13/16 1-13/16 ** D2146011 D4146011 11/64 .1719 1-1/16 2-1/8
* D1119210 10 .1935 1-3/16 2-1/4 * D1119240 40 .0980 13/16 1-13/16 ** D2146012 D4146012 3/16 .1875 1-1/8 2-3/16
* D1119211 11 .1910 1-3/16 2-1/4 * D1119241 41 .0960 13/16 1-13/16 ** D2146013 D4146013 13/64 .2031 1-3/16 2-1/4
* D1119212 12 .1890 1-3/16 2-1/4 * D1119242 42 .0935 3/4 1-3/4 ** D2146014 D4146014 7/32 .2188 1-1/4 2-3/8
* D1119213 13 .1850 1-1/8 2-3/16 * D1119243 43 .0890 3/4 1-3/4 ** D2146015 D4146015 15/64 .2344 1-5/16 2-7/16
* D1119214 14 .1820 1-1/8 2-3/16 * D1119244 44 .0860 3/4 1-3/4 ** D2146016 D4146016 1/4 .2500 1-3/8 2-1/2
* D1119215 15 .1800 1-1/8 2-3/16 * D1119245 45 .0820 3/4 1-3/4 ** D2146017 D4146017 17/64 .2656 1-7/16 2-5/8
* D1119216 16 .1770 1-1/8 2-3/16 * D1119246 46 .0810 3/4 1-3/4 ** D2146018 D4146018 9/32 .2813 1-1/2 2-11/16
* D1119217 17 .1730 1-1/8 2-3/16 * D1119247 47 .0785 11/16 1-11/16 ** D2146019 D4146019 19/64 .2969 1-9/16 2-3/4
* D1119218 18 .1695 1-1/16 2-1/8 * D1119248 48 .0760 11/16 1-11/16 ** D2146020 D4146020 5/16 .3125 1-5/8 2-13/16
* D1119219 19 .1660 1-1/16 2-1/8 * D1119249 49 .0730 11/16 1-11/16 ** D2146021 D4146021 21/64 .3281 1-11/16 2-15/16
* D1119220 20 .1610 1-1/16 2-1/8 * D1119250 50 .0700 11/16 1-11/16 ** D2146022 D4146022 11/32 .3438 1-11/16 3
* D1119221 21 .1590 1-1/16 2-1/8 * D1119251 51 .0670 11/16 1-11/16 ** D2146023 D4146023 23/64 .3594 1-3/4 3-1/16
* D1119222 22 .1570 1-1/16 2-1/8 * D1119252 52 .0635 11/16 1-11/16 ** D2146024 D4146024 3/8 .3750 1-13/16 3-1/8
* D1119223 23 .1540 1 2-1/16 * D1119253 53 .0595 5/8 1-5/8 ** D2146025 D4146025 25/64 .3906 1-7/8 3-1/4
* D1119224 24 .1520 1 2-1/16 * D1119254 54 .0550 5/8 1-5/8 ** D2146026 D4146026 13/32 .4063 1-15/16 3-5/16
* D1119225 25 .1495 1 2-1/16 * D1119255 55 .0520 5/8 1-5/8 ** D2146027 D4146027 27/64 .4219 2 3-3/8
* D1119226 26 .1470 1 2-1/16 * D1119256 56 .0465 1/2 1-3/8 ** D2146028 D4146028 7/16 .4375 2-1/16 3-7/16
* D1119227 27 .1440 1 2-1/16 * D1119257 57 .0430 1/2 1-3/8 ** D2146029 D4146029 29/64 .4531 2-1/8 3-9/16
* D1119228 28 .1405 15/16 1-15/16 * D1119258 58 .0420 1/2 1-3/8 ** D2146030 D4146030 15/32 .4688 2-1/8 3-5/8
* D1119229 29 .1360 15/16 1-15/16 * D1119259 59 .0410 1/2 1-3/8 ** D2146031 D4146031 31/64 .4844 2-3/16 3-11/16
* D1119230 30 .1285 15/16 1-15/16 * D1119260 60 .0400 1/2 1-3/8 ** D2146032 D4146032 1/2 .5000 2-1/4 3-3/4
▶ Tolerance : See page 218 / * 10pcs per package ◎ : Excellent ◯ : Good ▶ Tolerance : See page 218 / * 10pcs per package ** 5pcs per package ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Prehardened Carbon Prehardened
Steels Alloy Steels Steels Hardened Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium Steels Alloy Steels Steels Hardened Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium
Steels
~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~ ~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~ Steels
◎ ◎ ○ ○ ○ ○ ◎ ◎ ○ ○ ○
