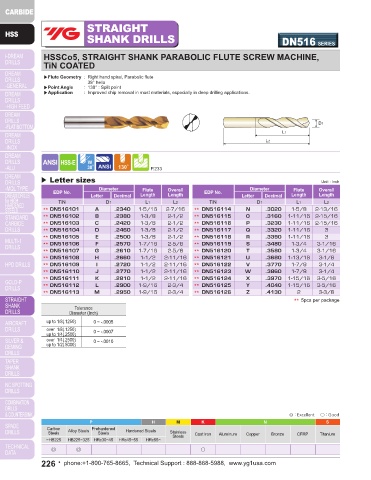

Page 226 - YG 2019

STRAIGHT STRAIGHT
SHANK DRILLS DN516 SERIES SHANK DRILLS DN515 SERIES

HSSCo5, STRAIGHT SHANK PARABOLIC FLUTE SCREW MACHINE, HSSCo5, STRAIGHT SHANK PARABOLIC FLUTE SCREW MACHINE,
TiN COATED TiN COATED

▶Flute Geometry : Right hand spiral, Parabolic flute ▶Flute Geometry : Right hand spiral, Parabolic flute
38° helix 38° helix
▶Point Angle : 130° : Split point ▶Point Angle : 130° : Split point
▶Application : Improved chip removal in most materials, especially in deep drilling applications. ▶Application : Improved chip removal in most materials, especially in deep drilling applications.

D1 D1
L1 L1
L2 L2

HSS-E HSS-E
130 P.233 130 P.233
▶ Letter sizes Unit : Inch ▶ Wire gauge sizes Unit : Inch
Diameter Flute Overall Diameter Flute Overall Diameter Flute Overall Diameter Flute Overall
EDP No. EDP No. EDP No. EDP No.
Letter Decimal Length Length Letter Decimal Length Length Wire gauge Decimal Length Length Wire gauge Decimal Length Length
TiN D1 L1 L2 TiN D1 L1 L2 TiN D1 L1 L2 TiN D1 L1 L2
** DN516101 A .2340 1-5/16 2-7/16 ** DN516114 N .3020 1-5/8 2-13/16 ** DN515201 1 .2280 1-5/16 2-7/16 ** DN515225 25 .1495 1 2-1/16
** DN516102 B .2380 1-3/8 2-1/2 ** DN516115 O .3160 1-11/16 2-15/16 ** DN515202 2 .2210 1-5/16 2-7/16 ** DN515226 26 .1470 1 2-1/16
** DN516103 C .2420 1-3/8 2-1/2 ** DN516116 P .3230 1-11/16 2-15/16 ** DN515203 3 .2130 1-1/4 2-3/8 ** DN515227 27 .1440 1 2-1/16
** DN516104 D .2460 1-3/8 2-1/2 ** DN516117 Q .3320 1-11/16 3 ** DN515204 4 .2090 1-1/4 2-3/8 ** DN515228 28 .1405 15/16 1-15/16
** DN516105 E .2500 1-3/8 2-1/2 ** DN516118 R .3390 1-11/16 3 ** DN515205 5 .2055 1-1/4 2-3/8 ** DN515229 29 .1360 15/16 1-15/16
** DN516106 F .2570 1-7/16 2-5/8 ** DN516119 S .3480 1-3/4 3-1/16 ** DN515206 6 .2040 1-1/4 2-3/8 ** DN515230 30 .1285 15/16 1-15/16
** DN516107 G .2610 1-7/16 2-5/8 ** DN516120 T .3580 1-3/4 3-1/16 ** DN515207 7 .2010 1-3/16 2-1/4 ** DN515231 31 .1200 7/8 1-7/8
** DN516108 H .2660 1-1/2 2-11/16 ** DN516121 U .3680 1-13/16 3-1/8 ** DN515208 8 .1990 1-3/16 2-1/4 ** DN515232 32 .1160 7/8 1-7/8
** DN516109 I .2720 1-1/2 2-11/16 ** DN516122 V .3770 1-7/8 3-1/4 ** DN515209 9 .1960 1-3/16 2-1/4 ** DN515233 33 .1130 7/8 1-7/8
** DN516110 J .2770 1-1/2 2-11/16 ** DN516123 W .3860 1-7/8 3-1/4 ** DN515210 10 .1935 1-3/16 2-1/4 ** DN515234 34 .1110 7/8 1-7/8
** DN516111 K .2810 1-1/2 2-11/16 ** DN516124 X .3970 1-15/16 3-5/16 ** DN515211 11 .1910 1-3/16 2-1/4 ** DN515235 35 .1100 7/8 1-7/8
** DN516112 L .2900 1-9/16 2-3/4 ** DN516125 Y .4040 1-15/16 3-5/16 ** DN515212 12 .1890 1-3/16 2-1/4 ** DN515236 36 .1065 13/16 1-13/16
** DN516113 M .2950 1-9/16 2-3/4 ** DN516126 Z .4130 2 3-3/8 ** DN515213 13 .1850 1-1/8 2-3/16 * DN515237 37 .1040 13/16 1-13/16
** 5pcs per package ** DN515214 14 .1820 1-1/8 2-3/16 * DN515238 38 .1015 13/16 1-13/16
Tolerance ** DN515215 15 .1800 1-1/8 2-3/16 * DN515239 39 .0995 13/16 1-13/16
Diameter (Inch) ** DN515216 16 .1770 1-1/8 2-3/16 * DN515240 40 .0980 13/16 1-13/16
up to 1/8(.1250) 0 ~ -.0005 ** DN515217 17 .1730 1-1/8 2-3/16 * DN515241 41 .0960 13/16 1-13/16
over 1/8(.1250) 0 ~ -.0007 ** DN515218 18 .1695 1-1/16 2-1/8 * DN515242 42 .0935 3/4 1-3/4
up to 1/4(.2500) ** DN515219 19 .1660 1-1/16 2-1/8 * DN515243 43 .0890 3/4 1-3/4
over 1/4(.2500) 0 ~ -.0010 ** DN515220 20 .1610 1-1/16 2-1/8 * DN515244 44 .0860 3/4 1-3/4
up to 1/2(.5000)
** DN515221 21 .1590 1-1/16 2-1/8 * DN515245 45 .0820 3/4 1-3/4
** DN515222 22 .1570 1-1/16 2-1/8 * DN515246 46 .0810 3/4 1-3/4
** DN515223 23 .1540 1 2-1/16 * DN515247 47 .0785 11/16 1-11/16
** DN515224 24 .1520 1 2-1/16
Tolerance * 10pcs per package
Diameter (Inch) ** 5pcs per package
up to 1/8(.1250) 0 ~ -.0005
over 1/8(.1250) 0 ~ -.0007
up to 1/4(.2500)
over 1/4(.2500) 0 ~ -.0010
◎ : Excellent ◯ : Good up to 1/2(.5000) ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Prehardened Carbon Alloy Steels Prehardened Hardened Steels
Steels Alloy Steels Steels Hardened Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium Steels Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium
Steels
Steels
~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~ ~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~
◎ ◎ ○ ◎ ◎ ○
226 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 227
