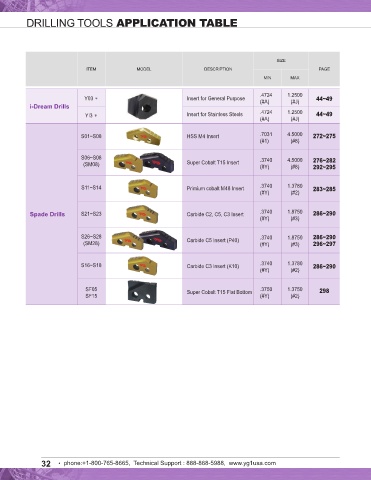

DRILLING TOOLS APPLICATION TABLE INSERT

◎ : Excellent ◯ : Good
P M K N
Non-
alloyed
SIZE Steels, Stainless Copper
Free Carbon Steels Alloy Steels High Alloyed steels Structural Steels Tool Steels Steels Cast lron Aluminum Alloys
ITEM MODEL DESCRIPTION PAGE Machining
Steels
MIN MAX ~HRc24 ~HRc28 HRc28~ ~HRc28 HRc28~ ~HRc37 HRc37~ ~HRc24 HRc24~ ~HRc13 HRc13~ ~HRc28 ~HRc19 HRc19~ ~HRc8 ~HB110
(~HB250) (~HB275) (HB275~) (~HB275) (HB275~) (~HB350) (HB350~) (~HB250) (HB250~) (~HB200) (HB200~) (~HB275) (~HB220) (HB220~) (~HB180)
.4724 1.2500
Y03 ✽ Insert for General Purpose (#A) (#J) 44~49 ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎
i-Dream Drills
YI3 ✽ Insert for Stainless Steels .4724 1.2500 44~49 ○ ○ ○ ○ ○ ◎ ○ ○
(#A) (#J)

S01~S08 HSS M4 Insert .7031 4.5000 272~275 ○ ○ ○ ○ ○ ○ ○ ◎ ◎ ○ ◎ ◎
(#1) (#8)

S06~S08 .3740 4.5000 276~282 ◎ ◎ ◎ ◎ ◎ ○ ○ ◎ ◎ ○ ○ ○ ○ ◎ ○ ○
(SM08) Super Cobalt T15 Insert (#Y) (#8) 292~295

S11~S14 Primium cobalt M48 Insert .3740 1.3780 283~285 ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ○ ○ ◎ ○ ○
(#Y) (#2)

Spade Drills S21~S23 Carbide C2, C5, C3 Insert .3740 1.8750 286~290 ○ ○ ○ ○ ○ ◎ ◎ ○ ○ ○ ○ ◎ ○ ○ ◎ ◎
(#Y) (#3)

S26~S28 .3740 1.8750 286~290 ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ○ ○ ○ ○ ○
(SM28) Carbide C5 Insert (P40) (#Y) (#3) 296~297

S16~S18 Carbide C3 Insert (K10) .3740 1.3780 286~290 ◎ ◎
(#Y) (#2)

SF05 Super Cobalt T15 Flat Bottom .3750 1.3750 298 ◎ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○ ○ ◎ ○ ○
SF15 (#Y) (#2)
