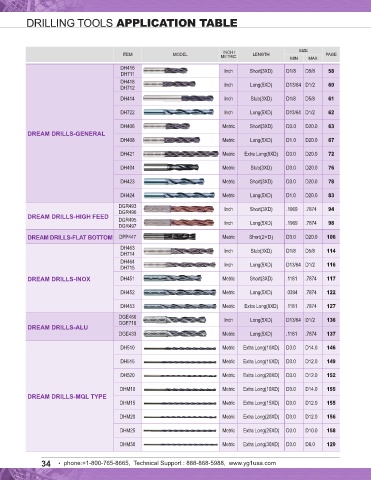

DRILLING TOOLS APPLICATION TABLE SOLID

◎ : Excellent ◯ : Good
P H M K N S
INCH / SIZE Carbon Alloy Prehardened Hardened Steels
ITEM MODEL METRIC LENGTH PAGE Steels Steels Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium
Steels
MIN
MAX
~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~
DH416 Inch Short(3XD) D1/8 D5/8 58
DH711 ◎ ◎ ◎ ○ ○
DH418 Inch Long(5XD) D13/64 D1/2 60
DH712 ◎ ◎ ◎ ○ ○
DH414 Inch Stub(3XD) D1/8 D5/8 61 ◎ ◎ ◎ ○ ○
DH722 Inch Long(5XD) D13/64 D1/2 62 ◎ ◎ ◎ ○ ○

DH406 Metric Short(3XD) D3.0 D20.0 63 ◎ ◎ ◎ ○ ○
DREAM DRILLS-GENERAL
DH408 Metric Long(5XD) D1.0 D20.0 67 ◎ ◎ ◎ ○ ○

DH421 Metric Extra Long(8XD) D3.0 D20.0 72 ◎ ◎ ◎ ○ ○

DH404 Metric Stub(3XD) D3.0 D20.0 76 ◎ ◎ ◎ ○ ○
DH423 Metric Short(3XD) D3.0 D20.0 78 ◎ ◎ ◎ ○ ○

DH424 Metric Long(5XD) D1.0 D20.0 83 ◎ ◎ ◎ ○ ○

DGR493 Inch Short(3XD) .1969 .7874 94
DGR496 ◎ ◎ ○ ◎ ○
DREAM DRILLS-HIGH FEED
DGR495 Inch Long(5XD) .1969 .7874 98
DGR497 ◎ ◎ ○ ◎ ○
DREAM DRILLS-FLAT BOTTOM DPP447 Metric Short(2×D) D3.0 D20.0 106 ◎ ◎ ◎ ○ ○ ◎ ○ ○
DH463 Inch Stub(3XD) D1/8 D5/8 114
DH714 ◎ ◎ ○ ◎ ○ ○
DH464 Inch Long(5XD) D13/64 D1/2 116
DH715 ◎ ◎ ○ ◎ ○ ○
DREAM DRILLS-INOX DH451 Metric Short(3XD) .1181 .7874 117 ◎ ◎ ○ ◎ ○ ○

DH452 Metric Long(5XD) .0394 .7874 122 ◎ ◎ ○ ◎ ○ ○

DH453 Metric Extra Long(8XD) .1181 .7874 127 ◎ ◎ ○ ◎ ○ ○
DGE466 Inch Long(5XD) D13/64 D1/2 136
DGE718 ◎
DREAM DRILLS-ALU
DGE433 Metric Long(5XD) .1181 .7874 137 ◎

DH510 Metric Extra Long(10XD) D3.0 D14.0 146 ◎ ◎ ○ ○
DH515 Metric Extra Long(15XD) D3.0 D12.0 149 ◎ ◎ ○ ○

DH520 Metric Extra Long(20XD) D3.0 D12.0 152 ◎ ◎ ○ ○

DHM10 Metric Extra Long(10XD) D3.0 D14.0 155 ◎ ◎ ○ ○
DREAM DRILLS-MQL TYPE
DHM15 Metric Extra Long(15XD) D3.0 D12.0 155 ◎ ◎ ○ ○

DHM20 Metric Extra Long(20XD) D3.0 D12.0 156 ◎ ◎ ○ ○

DHM25 Metric Extra Long(25XD) D3.0 D10.0 158 ◎ ◎ ○ ○
DHM30 Metric Extra Long(30XD) D3.0 D8.0 129 ◎ ◎ ○ ○
