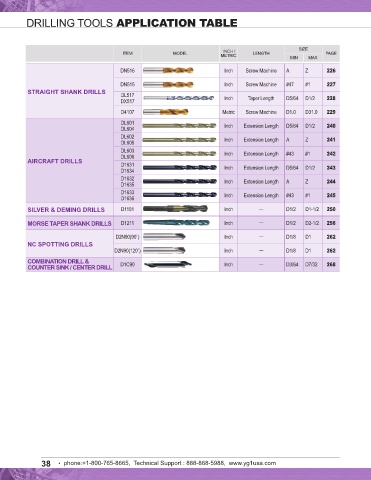

DRILLING TOOLS APPLICATION TABLE SOLID

◎ : Excellent ◯ : Good
P H M K N S
Carbon
Alloy
Hardened Steels
INCH /
Steels
Steels
Steels
ITEM MODEL METRIC LENGTH MIN SIZE MAX PAGE ~HB225 HB225~325 Prehardened HRc45~55 HRc55~ Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium
Steels
HRc30~45
DN516 Inch Screw Machine A Z 226 ◎ ◎ ○
DN515 Inch Screw Machine #47 #1 227 ◎ ◎ ○
STRAIGHT SHANK DRILLS
DL517
DX517 Inch Taper Length D5/64 D1/2 228 ◎ ◎ ○
D4107 Metric Screw Machine D1.0 D31.0 229 ◎ ◎ ○ ○ ○ ○
DL601 Inch Extension Length D5/64 D1/2 240 ◎ ○ ○ ○ ○ ○ ○
DL604
DL602 Inch Extension Length A Z 241
DL605 ◎ ○ ○ ○ ○ ○ ○
DL603 Inch Extension Length #43 #1 242 ◎ ○ ○ ○ ○ ○ ○
DL606
AIRCRAFT DRILLS
D1631 Inch Extension Length D5/64 D1/2 243 ◎ ◎ ○ ○ ○ ○ ○ ○ ○
D1634
D1632 Inch Extension Length A Z 244 ◎ ◎ ○ ○ ○ ○ ○ ○ ○
D1635
D1633 Inch Extension Length #43 #1 245 ◎ ◎ ○ ○ ○ ○ ○ ○ ○
D1636
SILVER & DEMING DRILLS D1191 Inch — D1/2 D1-1/2 250 ◎ ◎ ○ ○ ○

MORSE TAPER SHANK DRILLS D1211 Inch — D1/2 D2-1/2 256 ◎ ◎ ○ ○ ○ ○

D2N90(90˚) Inch — D1/8 D1 262 ◎ ◎ ○ ○ ○
NC SPOTTING DRILLS ◎ ◎ ○ ○ ○
D2N90(120˚) Inch — D1/8 D1 262
COMBINATION DRILL & D1C90 Inch — D3/64 D7/32 268 ◎ ◎ ○ ○ ○ ○ ○ ○
COUNTER SINK / CENTER DRILL
