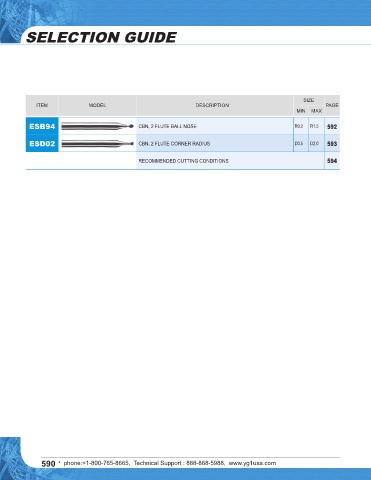

SELECTION GUIDE CBN END MILLS
◎ : Excellent ◯ : Good
P H M K N S
High
SIZE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
MIN MAX ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
ESB94 CBN, 2 FLUTE BALL NOSE R0.2 R1.5 592 ◎ ◎
ESD02 CBN, 2 FLUTE CORNER RADIUS D0.5 D2.0 593 ◎ ◎
RECOMMENDED CUTTING CONDITIONS 594
