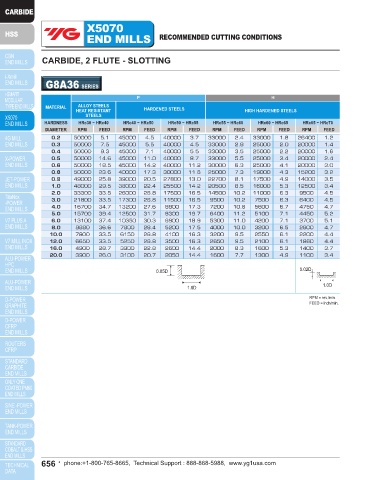

Page 656 - YG 2019

X5070 X5070
END MILLS RECOMMENDED CUTTING CONDITIONS END MILLS RECOMMENDED CUTTING CONDITIONS

CARBIDE, 2 FLUTE - SLOTTING CARBIDE, 2 FLUTE - SIDE CUTTING

G8A36 SERIES G8A36 SERIES

P H P H
MATERIAL ALLOY STEELS HARDENED STEELS MATERIAL ALLOY STEELS
HEAT RESISTANT HIGH HARDENED STEELS HEAT RESISTANT HARDENED STEELS HIGH HARDENED STEELS
X5070 STEELS STEELS X5070
END MILLS HARDNESS HRc30 ~ HRc40 HRc40 ~ HRc50 HRc50 ~ HRc55 HRc55 ~ HRc60 HRc60 ~ HRc65 HRc65 ~ HRc70 HARDNESS HRc30 ~ HRc40 HRc40 ~ HRc50 HRc50 ~ HRc55 HRc55 ~ HRc60 HRc60 ~ HRc65 HRc65 ~ HRc70 END MILLS
DIAMETER RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED DIAMETER RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED
0.2 50000 5.1 45000 4.5 40000 3.7 33000 2.4 33000 1.8 26400 1.2 1.0 48000 41.3 38000 32.3 25500 20.1 20500 12.2 16000 7.5 12500 4.9
0.3 50000 7.5 45000 5.5 40000 4.5 33000 2.8 25000 2.0 20000 1.4 2.0 33300 47.2 26000 38.2 17500 23.6 14500 14.6 11000 9.1 9500 6.5
0.4 50000 9.3 45000 7.1 40000 5.5 33000 3.5 25000 2.2 20000 1.6 3.0 21800 47.2 17300 38.2 11500 23.6 9500 14.6 7500 9.1 6400 6.5
0.5 50000 14.6 45000 11.0 40000 8.7 33000 5.5 25000 3.4 20000 2.4 4.0 16700 49.2 13200 39.4 8800 24.6 7200 15.2 5600 9.5 4750 6.7
0.6 50000 18.5 45000 14.2 40000 11.2 30000 6.3 25000 4.1 20000 3.0 5.0 15700 57.1 12500 45.3 8300 28.0 6400 16.1 5100 10.2 4450 7.5
0.8 50000 23.6 40000 17.3 30000 11.6 25000 7.3 19000 4.3 15200 3.2 6.0 13100 53.2 10350 43.3 6900 27.2 5300 15.8 4200 10.0 3700 7.3
0.9 49000 25.8 39000 20.5 27800 13.0 22700 8.1 17500 4.9 14000 3.5 8.0 9880 52.0 7800 40.6 5200 25.0 4000 14.4 3200 9.3 2800 6.7
1.0 48000 29.5 38000 22.4 25500 14.2 20500 8.5 16000 5.3 12500 3.4 10.0 7800 47.2 6150 38.2 4100 23.2 3200 13.4 2550 8.7 2200 6.3
2.0 33300 33.5 26000 26.8 17500 16.5 14500 10.2 11000 6.3 9500 4.5 12.0 6650 47.2 5250 38.2 3500 23.2 2650 13.4 2100 8.7 1860 6.3
3.0 21800 33.5 17300 26.8 11500 16.5 9500 10.2 7500 6.3 6400 4.5 16.0 4900 41.3 3900 33.1 2600 20.5 2000 11.8 1600 7.5 1400 5.5
4.0 16700 34.7 13200 27.6 8800 17.3 7200 10.6 5600 6.7 4750 4.7 20.0 3900 37.4 3100 29.5 2050 18.7 1600 10.8 1300 6.9 1100 4.2
5.0 15700 39.4 12500 31.7 8300 19.7 6400 11.2 5100 7.1 4450 5.2
6.0 13100 37.4 10350 30.3 6900 18.9 5300 11.0 4200 7.1 3700 5.1
8.0 9880 36.6 7800 28.4 5200 17.5 4000 10.0 3200 6.5 2800 4.7 1.0D
10.0 7800 33.5 6150 26.8 4100 16.3 3200 9.5 2550 6.1 2200 4.4 0.03D
12.0 6650 33.5 5250 26.8 3500 16.3 2650 9.5 2100 6.1 1860 4.4
16.0 4900 28.7 3900 22.8 2600 14.4 2000 8.3 1600 5.3 1400 3.7 RPM = rev./min.
20.0 3900 26.0 3100 20.7 2050 14.4 1600 7.7 1300 4.9 1100 3.4 FEED = inch/min.

0.05D 0.02D

1.0D 1.0D
RPM = rev./min.
FEED = inch/min.
