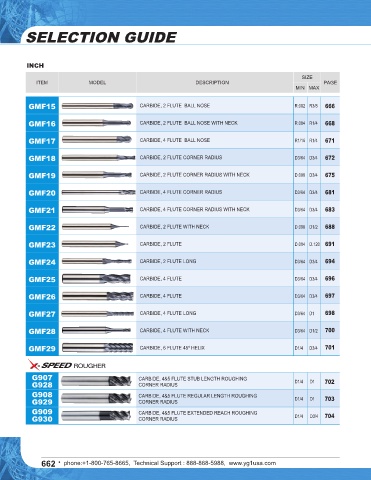

SELECTION GUIDE SOLID CARBIDE 4G MILL END MILLS

INCH ◎ : Excellent ◯ : Good
P H M K N S
SIZE Carbon Alloy Prehardened High High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Hardened Steels Hardened Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy

GMF15 CARBIDE, 2 FLUTE BALL NOSE R.002 R3/8 666 ○ ◎ ◎ ◎ ○ ○

GMF16 CARBIDE, 2 FLUTE BALL NOSE WITH NECK R.004 R1/4 668 ○ ◎ ◎ ◎ ○ ○

GMF17 CARBIDE, 4 FLUTE BALL NOSE R1/16 R1/4 671 ○ ◎ ◎ ◎ ○ ○

GMF18 CARBIDE, 2 FLUTE CORNER RADIUS D3/64 D3/4 672 ◎ ◎ ◎ ◎ ○ ○

GMF19 CARBIDE, 2 FLUTE CORNER RADIUS WITH NECK D.008 D3/4 675 ◎ ◎ ◎ ◎ ○ ○

GMF20 CARBIDE, 4 FLUTE CORNER RADIUS D3/64 D3/4 681 ◎ ◎ ◎ ◎ ○ ○

GMF21 CARBIDE, 4 FLUTE CORNER RADIUS WITH NECK D3/64 D3/4 683 ◎ ◎ ◎ ◎ ○ ○

GMF22 CARBIDE, 2 FLUTE WITH NECK D.008 D1/2 688 ◎ ◎ ◎ ◎ ○ ○ ○

GMF23 CARBIDE, 2 FLUTE D.004 D.120 691 ◎ ◎ ◎ ◎ ○ ○

GMF24 CARBIDE, 2 FLUTE LONG D3/64 D3/4 694 ◎ ◎ ◎ ◎ ○ ○ ○

GMF25 CARBIDE, 4 FLUTE D3/64 D3/4 696 ◎ ◎ ◎ ◎ ○ ○ ○

GMF26 CARBIDE, 4 FLUTE D3/64 D3/4 697 ○ ◎ ◎ ◎ ○ ○

GMF27 CARBIDE, 4 FLUTE LONG D3/64 D1 698 ◎ ◎ ◎ ◎ ○ ○

GMF28 CARBIDE, 4 FLUTE WITH NECK D3/64 D1/2 700 ◎ ◎ ◎ ◎ ○ ○ ○

GMF29 CARBIDE, 6 FLUTE 45º HELIX D1/4 D3/4 701 ◎ ◎ ◎ ◎ ○ ○

G907 CARBIDE, 4&5 FLUTE STUB LENGTH ROUGHING
G928 CORNER RADIUS D1/4 D1 702 ◎ ◎ ◎ ○ ○ ◎ ○
G908 CARBIDE, 4&5 FLUTE REGULAR LENGTH ROUGHING
G929 CORNER RADIUS D1/4 D1 703 ◎ ◎ ◎ ○ ○ ◎ ○
G909 CARBIDE, 4&5 FLUTE EXTENDED REACH ROUGHING
G930 CORNER RADIUS D1/4 D3/4 704 ◎ ◎ ◎ ○ ○ ◎ ○
