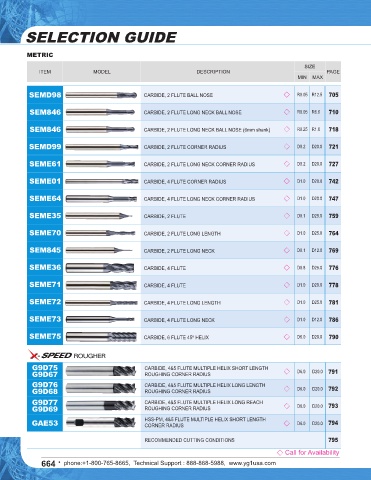

SELECTION GUIDE SOLID CARBIDE 4G MILL END MILLS

◎ : Excellent ◯ : Good
METRIC P H M K N S
High
SIZE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
SEMD98 CARBIDE, 2 FLUTE BALL NOSE ◇ R0.05 R12.5 705 ○ ◎ ◎ ◎ ○ ○

SEM846 CARBIDE, 2 FLUTE LONG NECK BALL NOSE ◇ R0.05 R6.0 710 ○ ◎ ◎ ◎ ○ ○

SEM846 CARBIDE, 2 FLUTE LONG NECK BALL NOSE (6mm shank) ◇ R0.25 R1.0 718 ○ ◎ ◎ ◎ ○ ○

SEMD99 CARBIDE, 2 FLUTE CORNER RADIUS ◇ D0.2 D20.0 721 ◎ ◎ ◎ ◎ ○ ○

SEME61 CARBIDE, 2 FLUTE LONG NECK CORNER RADIUS ◇ D0.2 D20.0 727 ◎ ◎ ◎ ◎ ○ ○

SEME01 CARBIDE, 4 FLUTE CORNER RADIUS ◇ D1.0 D20.0 742 ◎ ◎ ◎ ◎ ○ ○

SEME64 CARBIDE, 4 FLUTE LONG NECK CORNER RADIUS ◇ D1.0 D20.0 747 ◎ ◎ ◎ ◎ ○ ○

SEME35 CARBIDE, 2 FLUTE ◇ D0.1 D25.0 759 ◎ ◎ ◎ ◎ ○ ○ ○

SEME70 CARBIDE, 2 FLUTE LONG LENGTH ◇ D1.0 D25.0 764 ◎ ◎ ◎ ◎ ○ ○

SEM845 CARBIDE, 2 FLUTE LONG NECK ◇ D0.1 D12.0 769 ◎ ◎ ◎ ◎ ○ ○ ○

SEME36 CARBIDE, 4 FLUTE ◇ D0.8 D25.0 776 ◎ ◎ ◎ ◎ ○ ○ ○

SEME71 CARBIDE, 4 FLUTE ◇ D1.0 D20.0 778 ○ ◎ ◎ ◎ ○ ○

SEME72 CARBIDE, 4 FLUTE LONG LENGTH ◇ D1.0 D25.0 781 ◎ ◎ ◎ ◎ ○ ○

SEME73 CARBIDE, 4 FLUTE LONG NECK ◇ D1.0 D12.0 786 ◎ ◎ ◎ ◎ ○ ○ ○

SEME75 CARBIDE, 6 FLUTE 45º HELIX ◇ D6.0 D20.0 790 ◎ ◎ ◎ ◎ ○ ○

G9D75 CARBIDE, 4&5 FLUTE MULTIPLE HELIX SHORT LENGTH
G9D67 ROUGHING CORNER RADIUS ◇ D6.0 D20.0 791 ◎ ◎ ◎ ○ ○ ◎ ○
G9D76 CARBIDE, 4&5 FLUTE MULTIPLE HELIX LONG LENGTH
G9D68 ROUGHING CORNER RADIUS ◇ D6.0 D20.0 792 ◎ ◎ ◎ ○ ○ ◎ ○

G9D77 CARBIDE, 4&5 FLUTE MULTIPLE HELIX LONG REACH
G9D69 ROUGHING CORNER RADIUS ◇ D6.0 D20.0 793 ◎ ◎ ◎ ○ ○ ◎ ○

GAE53 HSS-PM, 4&5 FLUTE MULTIPLE HELIX SHORT LENGTH ◇ D6.0 D20.0 794 ◎ ◎ ○ ◎ ◎ ○
CORNER RADIUS

RECOMMENDED CUTTING CONDITIONS 795
◇ Call for Availability
