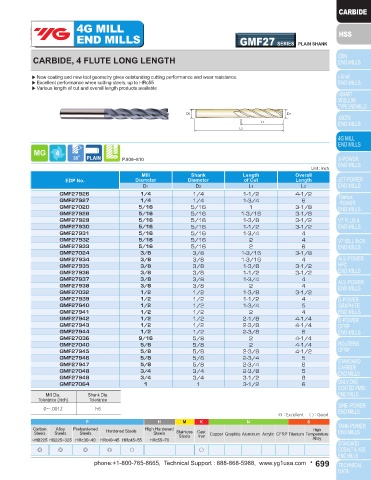

4G MILL 4G MILL
END MILLS GMF27 SERIES PLAIN SHANK END MILLS GMF27 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE LONG LENGTH CARBIDE, 4 FLUTE LONG LENGTH

▶ New coating and new tool geometry gives outstanding cutting performance and wear resistance. ▶ New coating and new tool geometry gives outstanding cutting performance and wear resistance.
▶ Excellent performance when cutting steels, up to HRc55 ▶ Excellent performance when cutting steels, up to HRc55
▶ Various length of cut and overall length products available ▶ Various length of cut and overall length products available

D2 D1
D2 D1
L1
L1
L2
L2

P.809~810 P.809~810
Unit : Inch Unit : Inch
Mill Shank Length Overall Mill Shank Length Overall
EDP No. Diameter Diameter of Cut Length EDP No. Diameter Diameter of Cut Length
D1 D2 L1 L2 D1 D2 L1 L2
GMF27003 3/64 1/4 1/8 2-3/8 GMF27926 1/4 1/4 1-1/2 4-1/2
GMF27901 3/64 1/4 5/32 2-3/8 GMF27927 1/4 1/4 1-3/4 6
GMF27902 3/64 1/4 3/16 2-3/8 GMF27020 5/16 5/16 1 3-1/8
GMF27903 3/64 1/4 1/4 2-3/8 GMF27928 5/16 5/16 1-3/16 3-1/8
GMF27004 1/16 1/4 1/4 2-3/8 GMF27929 5/16 5/16 1-3/8 3-1/2
GMF27005 5/64 1/4 5/16 2-3/8 GMF27930 5/16 5/16 1-1/2 3-1/2
GMF27904 5/64 1/4 3/8 2-3/8 GMF27931 5/16 5/16 1-3/4 4
GMF27905 5/64 1/4 1/2 2-3/8 GMF27932 5/16 5/16 2 4
GMF27906 5/64 1/4 9/16 2-3/8 GMF27933 5/16 5/16 2 6
GMF27006 3/32 1/4 3/8 2-3/8 GMF27024 3/8 3/8 1-3/16 3-1/8
GMF27907 3/32 1/4 1/2 2-3/8 GMF27934 3/8 3/8 1-3/16 4
GMF27008 1/8 1/4 3/8 2-3/4 GMF27935 3/8 3/8 1-3/8 3-1/2
GMF27908 1/8 1/4 1/2 2-3/4 GMF27936 3/8 3/8 1-1/2 3-1/2
GMF27909 1/8 1/4 5/8 2-3/4 GMF27937 3/8 3/8 1-3/4 4
GMF27910 1/8 1/4 3/4 2-3/4 GMF27938 3/8 3/8 2 4
GMF27911 1/8 1/4 1 2-3/4 GMF27032 1/2 1/2 1-3/8 3-1/2
GMF27912 1/8 1/4 1-3/16 2-3/4 GMF27939 1/2 1/2 1-1/2 4
GMF27012 3/16 1/4 1/2 2-3/4 GMF27940 1/2 1/2 1-3/4 5
GMF27913 3/16 1/4 5/8 2-3/4 GMF27941 1/2 1/2 2 4
GMF27914 3/16 1/4 3/4 2-3/4 GMF27942 1/2 1/2 2-1/8 4-1/4
GMF27915 3/16 1/4 1 2-3/4 GMF27943 1/2 1/2 2-3/8 4-1/4
GMF27916 3/16 1/4 1-3/16 2-3/4 GMF27944 1/2 1/2 2-3/8 6
GMF27013 13/64 1/4 3/4 2-3/4 GMF27036 9/16 5/8 2 4-1/4
GMF27917 13/64 1/4 1 2-3/4 GMF27040 5/8 5/8 2 4-1/4
GMF27918 13/64 1/4 1-3/16 3-1/8 GMF27945 5/8 5/8 2-3/8 4-1/2
GMF27016 1/4 1/4 5/8 2-3/8 GMF27946 5/8 5/8 2-3/4 5
GMF27919 1/4 1/4 3/4 2-3/4 GMF27947 5/8 5/8 2-3/4 6
GMF27920 1/4 1/4 3/4 3-1/2 GMF27048 3/4 3/4 2-3/8 5
GMF27921 1/4 1/4 1 3 GMF27948 3/4 3/4 3-1/2 8
GMF27922 1/4 1/4 1-3/16 3-1/8 GMF27064 1 1 3-1/2 6
GMF27923 1/4 1/4 1-3/16 4
Mill Dia.
GMF27924 1/4 1/4 1-3/8 3-1/2 Tolerance (Inch) Shank Dia.
Tolerance
GMF27925 1/4 1/4 1-1/2 3-1/2
▶ NEXT PAGE 0~-.0012 h6
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Steels
Iron
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ◎ ◎ ◎ ◎ ○ ○
