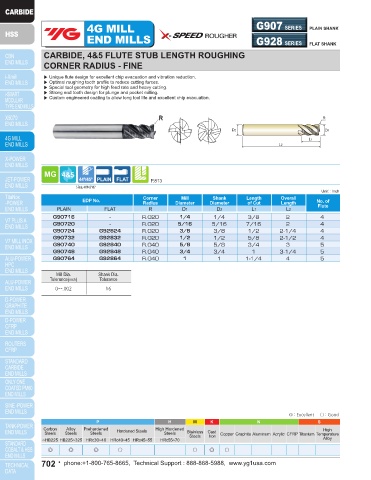

Page 702 - YG 2019

4G MILL G907 SERIES PLAIN SHANK 4G MILL G908 SERIES PLAIN SHANK
END MILLS G928 SERIES FLAT SHANK END MILLS G929 SERIES FLAT SHANK

CARBIDE, 4&5 FLUTE STUB LENGTH ROUGHING CARBIDE, 4&5 FLUTE REGULAR LENGTH ROUGHING
CORNER RADIUS - FINE CORNER RADIUS - FINE

▶ Unique flute design for excellent chip evacuation and vibration reduction. ▶ Unique flute design for excellent chip evacuation and vibration reduction.
▶ Optimal roughing tooth profile to reduce cutting forces. ▶ Optimal roughing tooth profile to reduce cutting forces.
▶ Special tool geometry for high feed rate and heavy cutting. ▶ Special tool geometry for high feed rate and heavy cutting.
▶ Strong end tooth design for plunge and pocket milling. ▶ Strong end tooth design for plunge and pocket milling.
▶ Custom engineered coating to allow long tool life and excellent chip evacuation. ▶ Custom engineered coating to all ng tool life and excellent chip evacuation.

R R R R
↙ ↙
D2 D1 D2 D1
L1 L1
L2 L2

44º/45º P.813 44º/45º P.813
5 Flute, 44°/44.5°/45° 5 Flute, 44°/44.5°/45°
Unit : Inch Unit : Inch
Mill
Shank
Shank
Corner
Mill
EDP No. Corner Diameter Diameter Length Overall No. of EDP No. Radius Diameter Diameter Length Overall No. of
Radius
of Cut
of Cut
Length
Length
PLAIN FLAT R D1 D2 L1 L2 Flute PLAIN FLAT R D1 D2 L1 L2 Flute
G90716 - R.020 1/4 1/4 3/8 2 4 G90816 - R.020 1/4 1/4 5/8 2-1/2 4
G90720 - R.020 5/16 5/16 7/16 2 4 G90820 - R.020 5/16 5/16 3/4 2-1/2 4
G90724 G92824 R.020 3/8 3/8 1/2 2-1/4 4 G90824 G92924 R.020 3/8 3/8 7/8 2-1/2 4
G90732 G92832 R.020 1/2 1/2 5/8 2-1/2 4 G90832 G92932 R.020 1/2 1/2 1 3 4
G90740 G92840 R.040 5/8 5/8 3/4 3 5 G90840 G92940 R.040 5/8 5/8 1-1/4 3-1/2 5
G90748 G92848 R.040 3/4 3/4 1 3-1/4 5 G90848 G92948 R.040 3/4 3/4 1-5/8 4 5
G90764 G92864 R.040 1 1 1-1/4 4 5 G90864 G92964 R.040 1 1 1-3/4 4-1/4 5
Mill Dia. Shank Dia. Mill Dia. Shank Dia.
Tolerance(inch) Tolerance Tolerance(inch) Tolerance
0~-.002 h6 0~-.002 h6

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Steels
Iron
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ○ ○ ◎ ○ ◎ ◎ ◎ ○ ○ ◎ ○
