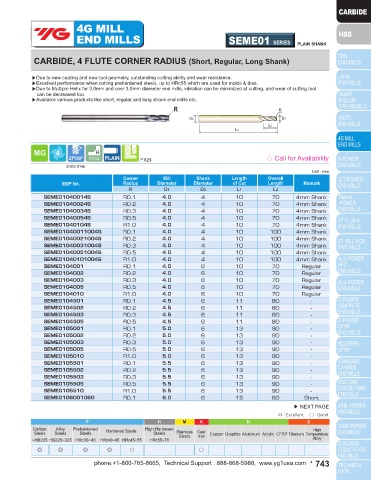

Page 743 - YG 2019

4G MILL 4G MILL
END MILLS SEME01 SERIES PLAIN SHANK END MILLS SEME01 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE CORNER RADIUS (Short, Regular, Long Shank) CARBIDE, 4 FLUTE CORNER RADIUS (Short, Regular, Long Shank)

▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance. ▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies. ▶Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies.
▶Due to Multiple Helix for 3.0mm and over 3.0mm diameter end mills, vibration can be minimized at cutting, and wear of cutting tool ▶Due to Multiple Helix for 3.0mm and over 3.0mm diameter end mills, vibration can be minimized at cutting, and wear of cutting tool
can be decreased too. can be decreased too.
▶Available various products like short, regular and long shank end millls etc. ▶Available various products like short, regular and long shank end millls etc.
R R ↙ R R
↙
D2 D1
D2 D1
L1
L1
L2 L2

27º/30º 0.02 P.824 ◇ Call for Availability 27º/30º 0.02 P.824 ◇ Call for Availability
D1<Ø3.0, 30˚ Helix D1<Ø3.0, 30˚ Helix
Unit : mm Unit : mm
Corner Mill Shank Length Overall Corner Mill Shank Length Overall
EDP No. Radius Diameter Diameter of Cut Length Remark EDP No. Radius Diameter Diameter of Cut Length Remark
R D1 D2 L1 L2 R D1 D2 L1 L2
SEME01010005 R0.05 1.0 6 2.5 50 - SEME01040014S R0.1 4.0 4 10 70 4mm Shank
SEME0101001 R0.1 1.0 6 2.5 50 - SEME01040024S R0.2 4.0 4 10 70 4mm Shank
SEME0101002 R0.2 1.0 6 2.5 50 - SEME01040034S R0.3 4.0 4 10 70 4mm Shank
SEME0101003 R0.3 1.0 6 2.5 50 - SEME01040054S R0.5 4.0 4 10 70 4mm Shank
SEME01012005 R0.05 1.2 6 3 50 - SEME01040104S R1.0 4.0 4 10 70 4mm Shank
SEME0101201 R0.1 1.2 6 3 50 - SEME01040011004S R0.1 4.0 4 10 100 4mm Shank
SEME0101202 R0.2 1.2 6 3 50 - SEME01040021004S R0.2 4.0 4 10 100 4mm Shank
SEME0101203 R0.3 1.2 6 3 50 - SEME01040031004S R0.3 4.0 4 10 100 4mm Shank
SEME01015005 R0.05 1.5 6 4 50 - SEME01040051004S R0.5 4.0 4 10 100 4mm Shank
SEME0101501 R0.1 1.5 6 4 50 - SEME01040101004S R1.0 4.0 4 10 100 4mm Shank
SEME0101502 R0.2 1.5 6 4 50 - SEME0104001 R0.1 4.0 6 10 70 Regular
SEME0101503 R0.3 1.5 6 4 50 - SEME0104002 R0.2 4.0 6 10 70 Regular
SEME0101505 R0.5 1.5 6 4 50 - SEME0104003 R0.3 4.0 6 10 70 Regular
SEME0102001 R0.1 2.0 6 6 50 - SEME0104005 R0.5 4.0 6 10 70 Regular
SEME0102002 R0.2 2.0 6 6 50 - SEME0104010 R1.0 4.0 6 10 70 Regular
SEME0102003 R0.3 2.0 6 6 50 - SEME0104501 R0.1 4.5 6 11 80 -
SEME0102005 R0.5 2.0 6 6 50 - SEME0104502 R0.2 4.5 6 11 80 -
SEME0102501 R0.1 2.5 6 7 60 - SEME0104503 R0.3 4.5 6 11 80 -
SEME0102502 R0.2 2.5 6 7 60 - SEME0104505 R0.5 4.5 6 11 80 -
SEME0102503 R0.3 2.5 6 7 60 - SEME0105001 R0.1 5.0 6 13 90 -
SEME0102505 R0.5 2.5 6 7 60 - SEME0105002 R0.2 5.0 6 13 90 -
SEME0103001 R0.1 3.0 6 8 60 - SEME0105003 R0.3 5.0 6 13 90 -
SEME0103002 R0.2 3.0 6 8 60 - SEME0105005 R0.5 5.0 6 13 90 -
SEME0103003 R0.3 3.0 6 8 60 - SEME0105010 R1.0 5.0 6 13 90 -
SEME0103005 R0.5 3.0 6 8 60 - SEME0105501 R0.1 5.5 6 13 90 -
SEME0103010 R1.0 3.0 6 8 60 - SEME0105502 R0.2 5.5 6 13 90 -
SEME0103501 R0.1 3.5 6 10 70 - SEME0105503 R0.3 5.5 6 13 90 -
SEME0103502 R0.2 3.5 6 10 70 - SEME0105505 R0.5 5.5 6 13 90 -
SEME0103503 R0.3 3.5 6 10 70 - SEME0105510 R1.0 5.5 6 13 90 -
SEME0103505 R0.5 3.5 6 10 70 - SEME0106001060 R0.1 6.0 6 15 60 Short
▶ NEXT PAGE ▶ NEXT PAGE
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Iron
Steels
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ◎ ◎ ◎ ◎ ○ ○
