4G MILL 4G MILL

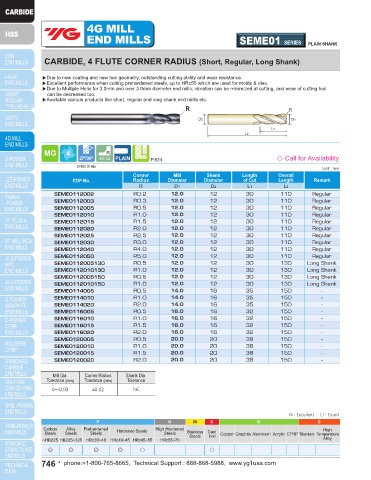

END MILLS SEME01 SERIES PLAIN SHANK END MILLS SEME64 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE CORNER RADIUS (Short, Regular, Long Shank) CARBIDE, 4 FLUTE LONG NECK CORNER RADIUS

▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance. ▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies. ▶Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies.
▶Due to Multiple Helix for 3.0mm and over 3.0mm diameter end mills, vibration can be minimized at cutting, and wear of cutting tool ▶Due to Multiple Helix for 3.0mm and over 3.0mm diameter end mills, vibration can be minimized at cutting, and wear of cutting tool
can be decreased too. can be decreased too.
▶Available various products like short, regular and long shank end millls etc.
R R ↙ R D3 R
↙
D2 D1
D2 D1
L1
L3
L1 L2
L2

27º/30º 0.02 P.824 ◇ Call for Availability 27º/30º 0.02 P.825~826 ◇ Call for Availability
D1<Ø3.0, 30˚ Helix D1<Ø3.0, 30˚ Helix
Unit : mm Unit : mm
Corner Mill Shank Length Overall Corner Mill Shank Length Length Overall Neck
EDP No. Radius Diameter Diameter of Cut Length Remark EDP No. Radius Diameter Diameter of Cut Below Shank Length Diameter Remark
R D1 D2 L1 L2 R D1 D2 L1 L3 L2 D3
SEME0112002 R0.2 12.0 12 30 110 Regular SEME6401000503 R0.05 1.0 4 1.5 3 50 0.95 -
SEME0112003 R0.3 12.0 12 30 110 Regular SEME6401000504 R0.05 1.0 4 1.5 4 50 0.95 -
SEME0112005 R0.5 12.0 12 30 110 Regular SEME6401000506 R0.05 1.0 4 1.5 6 50 0.95 -
SEME0112010 R1.0 12.0 12 30 110 Regular SEME6401000508 R0.05 1.0 4 1.5 8 50 0.95 -
SEME0112015 R1.5 12.0 12 30 110 Regular SEME6401000510 R0.05 1.0 4 1.5 10 50 0.95 -
SEME0112020 R2.0 12.0 12 30 110 Regular SEME6401000512 R0.05 1.0 4 1.5 12 50 0.95 -
SEME0112025 R2.5 12.0 12 30 110 Regular SEME6401000514 R0.05 1.0 4 1.5 14 50 0.95 -
SEME0112030 R3.0 12.0 12 30 110 Regular SEME6401000516 R0.05 1.0 4 1.5 16 50 0.95 -
SEME0112040 R4.0 12.0 12 30 110 Regular SEME6401000520 R0.05 1.0 4 1.5 20 50 0.95 -
SEME0112050 R5.0 12.0 12 30 110 Regular SEME640100103 R0.1 1.0 4 1.5 3 50 0.95 -
SEME0112005130 R0.5 12.0 12 30 130 Long Shank SEME640100104 R0.1 1.0 4 1.5 4 50 0.95 -
SEME0112010130 R1.0 12.0 12 30 130 Long Shank SEME640100106 R0.1 1.0 4 1.5 6 50 0.95 -
SEME0112005150 R0.5 12.0 12 30 130 Long Shank SEME640100108 R0.1 1.0 4 1.5 8 50 0.95 -
SEME0112010150 R1.0 12.0 12 30 130 Long Shank SEME640100110 R0.1 1.0 4 1.5 10 50 0.95 -
SEME0114005 R0.5 14.0 16 35 150 - SEME640100112 R0.1 1.0 4 1.5 12 50 0.95 -
SEME0114010 R1.0 14.0 16 35 150 - SEME640100114 R0.1 1.0 4 1.5 14 50 0.95 -
SEME0114020 R2.0 14.0 16 35 150 - SEME640100116 R0.1 1.0 4 1.5 16 50 0.95 -
SEME0116005 R0.5 16.0 16 32 150 - SEME640100120 R0.1 1.0 4 1.5 20 50 0.95 -
SEME0116010 R1.0 16.0 16 32 150 - SEME640100203 R0.2 1.0 4 1.5 3 50 0.95 -
SEME0116015 R1.5 16.0 16 32 150 - SEME640100204 R0.2 1.0 4 1.5 4 50 0.95 -
SEME0116020 R2.0 16.0 16 32 150 - SEME640100206 R0.2 1.0 4 1.5 6 50 0.95 -
SEME0120005 R0.5 20.0 20 38 150 - SEME640100208 R0.2 1.0 4 1.5 8 50 0.95 -
SEME0120010 R1.0 20.0 20 38 150 - SEME640100210 R0.2 1.0 4 1.5 10 50 0.95 -
SEME0120015 R1.5 20.0 20 38 150 - SEME640100212 R0.2 1.0 4 1.5 12 50 0.95 -
SEME0120020 R2.0 20.0 20 38 150 - SEME640100214 R0.2 1.0 4 1.5 14 50 0.95 -
SEME640100216 R0.2 1.0 4 1.5 16 50 0.95 -
Mill Dia. Corner Radius Shank Dia. SEME640100220 R0.2 1.0 4 1.5 20 50 0.95 -
Tolerance (mm) Tolerance (mm) Tolerance SEME640100303 R0.3 1.0 4 1.5 3 50 0.95 -
0~-0.03 ±0.02 h6 SEME640100304 R0.3 1.0 4 1.5 4 50 0.95 -
SEME640100306 R0.3 1.0 4 1.5 6 50 0.95 -
▶ NEXT PAGE

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Iron
Steels
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ◎ ◎ ◎ ◎ ○ ○
