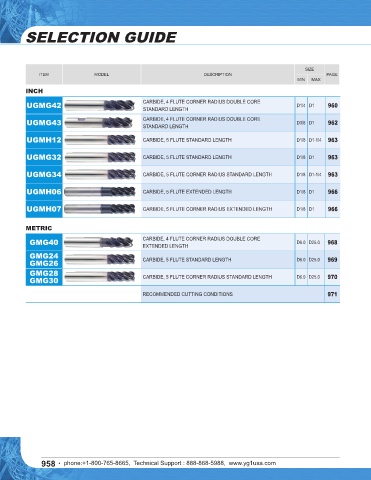

SELECTION GUIDE SOLID CARBIDE TitaNox-POWER END MILLS

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE Carbon Alloy Prehardened Hardened Steels Hardened Stainless Cast High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
MIN MAX ~HB225 HB225~352 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
INCH
UGMG42 CARBIDE, 4 FLUTE CORNER RADIUS DOUBLE CORE D1/4 D1 960 ○ ○ ○ ◎ ○ ◎ ○
STANDARD LENGTH
UGMG43 CARBIDE, 4 FLUTE CORNER RADIUS DOUBLE CORE D3/8 D1 962 ○ ○ ○ ◎ ○ ◎ ○
STANDARD LENGTH

UGMH12 CARBIDE, 5 FLUTE STANDARD LENGTH D1/8 D1-1/4 963 ○ ○ ○ ◎ ○ ◎ ○

UGMG32 CARBIDE, 5 FLUTE STANDARD LENGTH ◆ U.S.A Stock ○ ○ ○ ◎ ○ ◎ ○
963
D1/8 D1
UGMG34 CARBIDE, 5 FLUTE CORNER RADIUS STANDARD LENGTH D1/8 D1-1/4 963 ○ ○ ○ ◎ ○ ◎ ○

UGMH06 CARBIDE, 5 FLUTE EXTENDED LENGTH D1/8 D1 966 ○ ○ ○ ◎ ○ ◎ ○

UGMH07 CARBIDE, 5 FLUTE CORNER RADIUS EXTENDED LENGTH D1/8 D1 966 ○ ○ ○ ◎ ○ ◎ ○

METRIC

GMG40 CARBIDE, 4 FLUTE CORNER RADIUS DOUBLE CORE D6.0 D25.0 968 ○ ○ ○ ◎ ○ ◎ ○
EXTENDED LENGTH
GMG24
GMG26 CARBIDE, 5 FLUTE STANDARD LENGTH D6.0 D25.0 969 ○ ○ ○ ◎ ○ ◎ ○
GMG28 ○ ○ ○ ◎ ○ ◎ ○
970
D6.0 D25.0
GMG30 CARBIDE, 5 FLUTE CORNER RADIUS STANDARD LENGTH Call for Availability
RECOMMENDED CUTTING CONDITIONS 971

SECTION X-X’ SECTION Y-Y’
Excellent chip Higher rigidity
evacuation

The illustration above detailed along the X-X’ axis shows how the 4-flute design starts
the cut with aggressive chip evacuation. The Y-Y’ axis shows how the double core comes into play,
providing perfect slotting operations through its extra-rigid double-core design.
