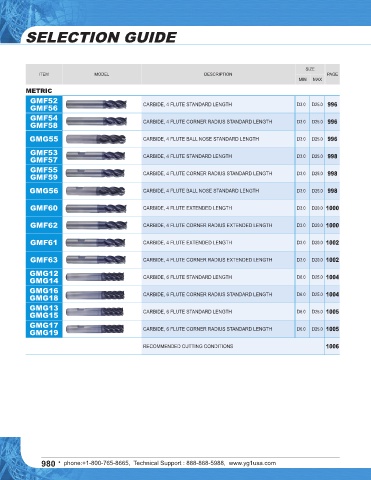

SELECTION GUIDE SOLID CARBIDE V7 PLUS A END MILLS

◎ : Excellent ○ : Good
P H M K N S
High
SIZE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy

METRIC
GMF52 D25.0 996
GMF56 CARBIDE, 4 FLUTE STANDARD LENGTH D3.0 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMF54
GMF58 CARBIDE, 4 FLUTE CORNER RADIUS STANDARD LENGTH D3.0 D25.0 996 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMG55 CARBIDE, 4 FLUTE BALL NOSE STANDARD LENGTH D3.0 D25.0 996 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

GMF53 D25.0 998
GMF57 CARBIDE, 4 FLUTE STANDARD LENGTH D3.0 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMF55
GMF59 CARBIDE, 4 FLUTE CORNER RADIUS STANDARD LENGTH D3.0 D25.0 998 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

GMG56 CARBIDE, 4 FLUTE BALL NOSE STANDARD LENGTH D3.0 D25.0 998 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

GMF60 CARBIDE, 4 FLUTE EXTENDED LENGTH D3.0 D20.0 1000 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

GMF62 CARBIDE, 4 FLUTE CORNER RADIUS EXTENDED LENGTH D3.0 D20.0 1000 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

GMF61 CARBIDE, 4 FLUTE EXTENDED LENGTH D3.0 D20.0 1002 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

GMF63 CARBIDE, 4 FLUTE CORNER RADIUS EXTENDED LENGTH D3.0 D20.0 1002 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

GMG12
GMG14 CARBIDE, 6 FLUTE STANDARD LENGTH D6.0 D25.0 1004 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMG16
GMG18 CARBIDE, 6 FLUTE CORNER RADIUS STANDARD LENGTH D6.0 D25.0 1004 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMG13 D25.0 1005
GMG15 CARBIDE, 6 FLUTE STANDARD LENGTH D6.0 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMG17
GMG19 CARBIDE, 6 FLUTE CORNER RADIUS STANDARD LENGTH D6.0 D25.0 1005 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

GMF58 RECOMMENDED CUTTING CONDITIONS 1006
