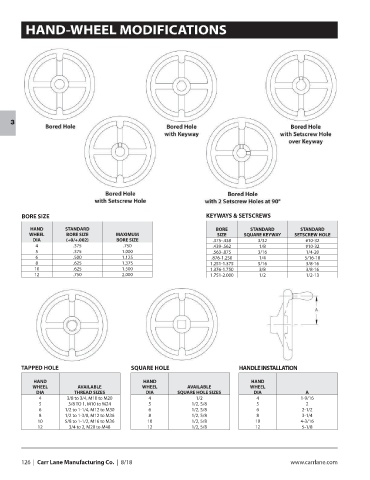

HAND-WHEEL MODIFICATIONS

3

BORE SIZE KEYWAYS & SETSCREWS

HAND STANDARD BORE STANDARD STANDARD
WHEEL BORE SIZE MAXIMUM SIZE SQUARE KEYWAY SETSCREW HOLE
DIA (+0/+.002) BORE SIZE .375-.438 3/32 #10-32
4 .375 .750 .439-.562 1/8 #10-32
5 .375 1.000 .563-.875 3/16 1/4-20
6 .500 1.125 .876-1.250 1/4 5/16-18
8 .625 1.375 1.251-1.375 5/16 3/8-16
10 .625 1.500 1.376-1.750 3/8 3/8-16
12 .750 2.000 1.751-2.000 1/2 1/2-13

TAPPED HOLE SQUARE HOLE HANDLE INSTALLATION

HAND HAND HAND
WHEEL AVAILABLE WHEEL AVAILABLE WHEEL
DIA THREAD SIZES DIA SQUARE HOLE SIZES DIA A
4 3/8 to 3/4, M10 to M20 4 1/2 4 1-9/16
5 3/8 TO 1, M10 to M24 5 1/2, 5/8 5 2
6 1/2 to 1-1/4, M12 to M30 6 1/2, 5/8 6 2-1/2
8 1/2 to 1-3/8, M12 to M36 8 1/2, 5/8 8 3-1/4
10 5/8 to 1-1/2, M16 to M36 10 1/2, 5/8 10 4-3/16
12 3/4 to 2, M20 to M48 12 1/2, 5/8 12 5-1/8

126 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
