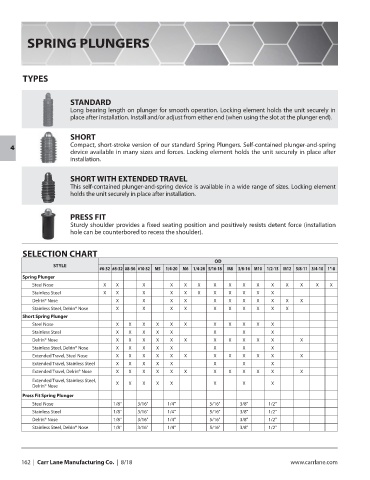

Page 164 - CarrLaneCatalog_2019ed-c.pdf

SPRING PLUNGERS

TYPES

STANDARD
Long bearing length on plunger for smooth operation. Locking element holds the unit securely in
place after installation. Install and/or adjust from either end (when using the slot at the plunger end).

SHORT
Compact, short-stroke version of our standard Spring Plungers. Self-contained plunger-and-spring
device available in many sizes and forces. Locking element holds the unit securely in place after
4
installation.

SHORT WITH EXTENDED TRAVEL
This self-contained plunger-and-spring device is available in a wide range of sizes. Locking element
holds the unit securely in place after installation.

PRESS FIT
Sturdy shoulder provides a fixed seating position and positively resists detent force (installation
hole can be counterbored to recess the shoulder).

SELECTION CHART
OD
STYLE
#6-32 #8-32 #8-36 #10-32 M5 1/4-20 M6 1/4-28 5/16-18 M8 3/8-16 M10 1/2-13 M12 5/8-11 3/4-10 1"-8
Spring Plunger
Steel Nose X X X X X X X X X X X X X X X
Stainless Steel X X X X X X X X X X X
Delrin® Nose X X X X X X X X X X X
Stainless Steel, Delrin® Nose X X X X X X X X X X
Short Spring Plunger
Steel Nose X X X X X X X X X X X
Stainless Steel X X X X X X X X
Delrin® Nose X X X X X X X X X X X X
Stainless Steel, Delrin® Nose X X X X X X X X
Extended Travel, Steel Nose X X X X X X X X X X X X
Extended Travel, Stainless Steel X X X X X X X X
Extended Travel, Delrin® Nose X X X X X X X X X X X X
Extended Travel, Stainless Steel,
Delrin® Nose X X X X X X X X
Press Fit Spring Plunger
Steel Nose 1/8" 3/16" 1/4" 5/16" 3/8" 1/2"
Stainless Steel 1/8" 3/16" 1/4" 5/16" 3/8" 1/2"
Delrin® Nose 1/8" 3/16" 1/4" 5/16" 3/8" 1/2"
Stainless Steel, Delrin® Nose 1/8" 3/16" 1/4" 5/16" 3/8" 1/2"
