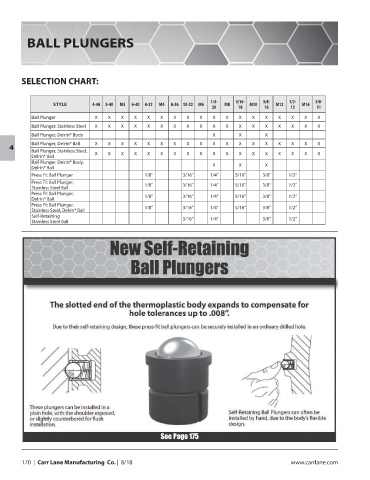

BALL PLUNGERS

SELECTION CHART:

1/4- 5/16- 3/8- 1/2- 5/8-
STYLE 4-48 5-40 M3 6-40 8-32 M4 8-36 10-32 M6 M8 M10 M12 M16
20 18 16 13 11
Ball Plunger X X X X X X X X X X X X X X X X X X
Ball Plunger, Stainless Steel X X X X X X X X X X X X X X X X X X
Ball Plunger, Delrin® Body X X X
Ball Plunger, Delrin® Ball X X X X X X X X X X X X X X X X X X
Ball Plunger, Stainless Steel,
4
Delrin® Ball X X X X X X X X X X X X X X X X X X
Ball Plunger, Delrin® Body, X X X
Delrin® Ball
Press Fit Ball Plunger 1/8” 3/16” 1/4” 5/16” 3/8” 1/2”
Press Fit Ball Plunger, 1/8” 3/16” 1/4” 5/16” 3/8” 1/2”
Stainless Steel Ball
Press Fit Ball Plunger,
Delrin® Ball 1/8” 3/16” 1/4” 5/16” 3/8” 1/2”
Press Fit Ball Plunger, 1/8” 3/16” 1/4” 5/16” 3/8” 1/2”
Stainless Steel, Delrin® Ball
Self-Retaining
Stainless Steel Ball 3/16” 1/4” 3/8” 1/2”

See Page 175
