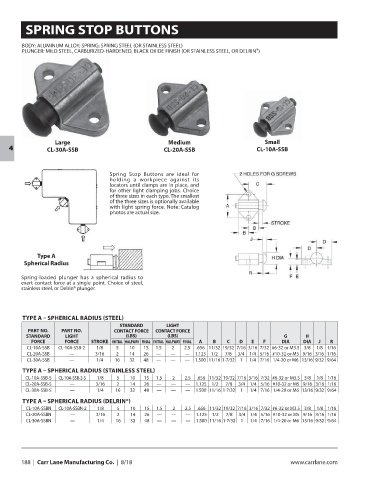

Page 190 - CarrLaneCatalog_2019ed-c.pdf

SPRING STOP BUTTONS

BODY: ALUMINUM ALLOY; SPRING: SPRING STEEL (OR STAINLESS STEEL)
PLUNGER: MILD STEEL, CARBURIZED-HARDENED, BLACK OXIDE FINISH (OR STAINLESS STEEL, OR DELRIN®)

Large Medium Small
4 CL-30A-SSB CL-20A-SSB CL-10A-SSB

Spring Stop Buttons are ideal for
holding a workpiece against its
locators until clamps are in place, and
for other light clamping jobs. Choice
of three sizes in each type. The smallest
of the three sizes is optionally available
with light spring force. Note: Catalog
photos are actual size.

Type A
Spherical Radius

Spring-loaded plunger has a spherical radius to
exert contact force at a single point. Choice of steel,
stainless steel, or Delrin® plunger.

TYPE A – SPHERICAL RADIUS (STEEL)
STANDARD LIGHT
PART NO. PART NO. CONTACT FORCE CONTACT FORCE
STANDARD LIGHT (LBS) (LBS) G H
FORCE FORCE STROKE INITIAL HALFWAY FINAL INITIAL HALFWAY FINAL A B C D E F DIA DIA J R
CL-10A-SSB CL-10A-SSB-2 1/8 5 10 15 1.5 2 2.5 .656 11/32 19/32 7/16 3/16 7/32 #6-32 or M3.5 3/8 1/8 1/16
CL-20A-SSB — 3/16 2 14 26 — — — 1.125 1/2 7/8 3/4 1/4 5/16 #10-32 or M5 9/16 3/16 1/16
CL-30A-SSB — 1/4 16 32 48 — — — 1.500 11/16 1-7/32 1 1/4 7/16 1/4-20 or M6 13/16 9/32 9/64
TYPE A – SPHERICAL RADIUS (STAINLESS STEEL)
CL-10A-SSB-S CL-10A-SSB-2-S 1/8 5 10 15 1.5 2 2.5 .656 11/32 19/32 7/16 3/16 7/32 #6-32 or M3.5 3/8 1/8 1/16
CL-20A-SSB-S — 3/16 2 14 26 — — — 1.125 1/2 7/8 3/4 1/4 5/16 #10-32 or M5 9/16 3/16 1/16
CL-30A-SSB-S — 1/4 16 32 48 — — — 1.500 11/16 1-7/32 1 1/4 7/16 1/4-20 or M6 13/16 9/32 9/64
TYPE A – SPHERICAL RADIUS (DELRIN®)
CL-10A-SSBN CL-10A-SSBN-2 1/8 5 10 15 1.5 2 2.5 .656 11/32 19/32 7/16 3/16 7/32 #6-32 or M3.5 3/8 1/8 1/16
CL-20A-SSBN — 3/16 2 14 26 — — — 1.125 1/2 7/8 3/4 1/4 5/16 #10-32 or M5 9/16 3/16 1/16
CL-30A-SSBN — 1/4 16 32 48 — — — 1.500 11/16 1-7/32 1 1/4 7/16 1/4-20 or M6 13/16 9/32 9/64

188 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
