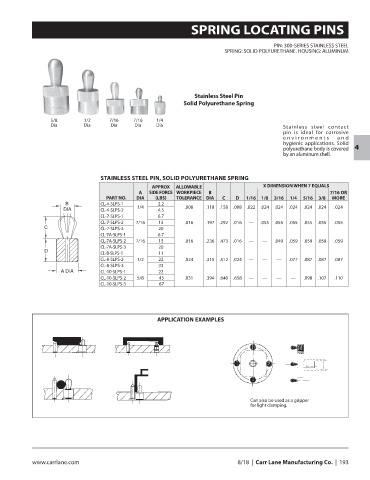

SPRING LOCATING PINS

PIN: 300-SERIES STAINLESS STEEL
SPRING: SOLID POLYURETHANE. HOUSING: ALUMINUM

Stainless Steel Pin
Solid Polyurethane Spring

5/8 1/2 7/16 7/16 1/4
Dia Dia Dia Dia Dia Stainless steel contact
pin is ideal for corrosive
en vir onments and
hygienic applications. Solid
polyurethane body is covered 4
by an aluminum shell.

STAINLESS STEEL PIN, SOLID POLYURETHANE SPRING
APPROX ALLOWABLE X DIMENSION WHEN 7 EQUALS
A SIDE FORCE WORKPIECE B 7/16 OR
PART NO. DIA (LBS) TOLERANCE DIA C D 1/16 1/8 3/16 1/4 5/16 3/8 MORE
B CL-4-SLPS-1 2.2
DIA CL-4-SLPS-2 1/4 4.5 .008 .118 .158 .008 .022 .024 .024 .024 .024 .024 .024
CL-7-SLPS-1 6.7
CL-7-SLPS-2 7/16 13 .016 .197 .292 .016 — .055 .055 .055 .055 .055 .055
C CL-7-SLPS-3 20
CL-7A-SLPS-1 6.7
CL-7A-SLPS-2 7/16 13 .016 .236 .473 .016 — — .049 .059 .059 .059 .059
CL-7A-SLPS-3 20
D
CL-8-SLPS-1 11
CL-8-SLPS-2 1/2 22 .024 .315 .512 .024 — — — .077 .087 .087 .087
CL-8-SLPS-3 33
A DIA CL-10-SLPS-1 22
CL-10-SLPS-2 5/8 45 .031 .394 .640 .658 — — — — .098 .107 .110
CL-10-SLPS-3 67

APPLICATION EXAMPLES

Can also be used as a gripper
for light clamping.
