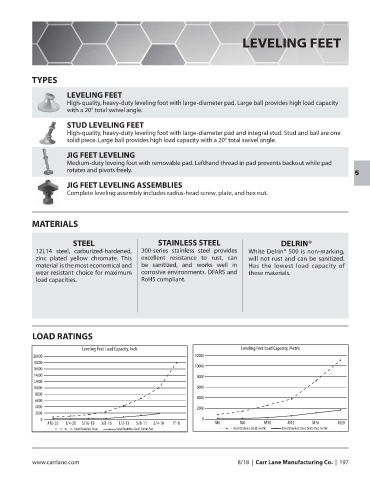

Page 199 - CarrLaneCatalog_2019ed-c.pdf

LEVELING FEET

TYPES

LEVELING FEET
High-quality, heavy-duty leveling foot with large-diameter pad. Large ball provides high load capacity
with a 20° total swivel angle.

STUD LEVELING FEET
High-quality, heavy-duty leveling foot with large-diameter pad and integral stud. Stud and ball are one
solid piece. Large ball provides high load capacity with a 20° total swivel angle.

JIG FEET LEVELING
Medium-duty leveing foot with removable pad. Lefthand thread in pad prevents backout while pad
rotates and pivots freely.
5
JIG FEET LEVELING ASSEMBLIES
Complete leveling assembly includes radius-head screw, plate, and hex nut.

MATERIALS

STEEL STAINLESS STEEL DELRIN®
12L14 steel, carburized-hardened, 300-series stainless steel provides White Delrin® 500 is non-marking,
zinc plated yellow chromate. This excellent resistance to rust, can will not rust and can be sanitized.
material is the most economical and be sanitized, and works well in Has the lowest load capacity of
wear resistant choice for maximum corrosive environments. DFARS and these materials.
load capacities. RoHS compliant.

LOAD RATINGS

Leveling Feet Load Capacity, Inch Leveling Feet Load Capacity, Metric
20000 12000
18000
10000
16000
14000 8000
12000
10000 6000
8000
4000
6000
4000 2000
2000
0 0
#10-32 1/4-20 5/16-18 3/8-16 1/2-13 5/8-11 3/4-10 1”-8 M6 M8 M10 M12 M16 M20
Steel/Stainless Steel Steel/Stainless Steel, Delrin Pad Steel/Stainless Steel, metric Steel/Stainless Steel, Delrin Pad, metric
