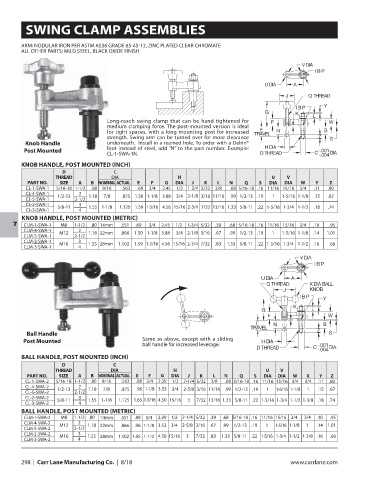

SWING CLAMP ASSEMBLIES

ARM: NODULAR IRON PER ASTM A536 GRADE 65-45-12, ZINC PLATED CLEAR CHROMATE
ALL OTHER PARTS: MILD STEEL, BLACK OXIDE FINISH

Long-reach swing clamp that can be hand tightened for
medium clamping force. The post-mounted version is ideal
for tight spaces, with a long mounting post for increased
strength. Swing arm can be turned over for more clearance
Knob Handle underneath. Install in a reamed hole. To order with a Delrin®
Post Mounted foot instead of steel, add “N” to the part number. Example:
CL-1-SWA-1N.
KNOB HANDLE, POST MOUNTED (INCH)
D C
THREAD DIA H U V
PART NO. SIZE A B NOMINAL ACTUAL E F G DIA J K L N Q S DIA DIA W Y Z
CL-1-SWA-1 5/16-18 1-1/2 .80 9/16 .563 .69 3/4 2.45 1/2 1-3/4 5/32 3/8 .68 5/16-18 .16 11/16 15/16 3/4 .11 .80
CL-4-SWA-1 2 .875 1.50 1-1/8 3.88 3/4 2-1/8 3/16 11/16 .99 1/2-13 1-5/16 1-1/8 .15 .67
CL-5-SWA-1 1/2-13 2-1/2 1.18 7/8 .19 1
CL-2-SWA-1 3 1.125 1.59 1-5/16 4.56 15/16 2-3/4 7/32 13/16 1.33 5/8-11 1-3/4 1-1/2 .18 .74
CL-3-SWA-1 5/8-11 4 1.55 1-1/8 .22 1-5/16
KNOB HANDLE, POST MOUNTED (METRIC)
CLM-1-SWA-1 M8 1-1/2 .80 14mm .551 .69 3/4 2.45 1/2 1-3/4 5/32 .39 .68 5/16-18 .16 11/16 15/16 3/4 .10 .95
7
CLM-4-SWA-1 M12 2 1.18 22mm .866 1.50 1-1/8 3.88 3/4 2-1/8 3/16 .67 .99 1/2-13 .19 1 1-5/16 1-1/8 .14 1.01
CLM-5-SWA-1 2-1/2
CLM-2-SWA-1 M16 3 1.55 28mm 1.102 1.59 1-5/16 4.56 15/16 2-3/4 7/32 .83 1.33 5/8-11 .22 1-5/16 1-3/4 1-1/2 .16 .66
CLM-3-SWA-1 4

Ball Handle
Post Mounted Same as above, except with a sliding
ball handle for increased leverage.
BALL HANDLE, POST MOUNTED (INCH)
D C
THREAD DIA H U V
PART NO. SIZE A B NOMINAL ACTUAL E F G DIA J K L N Q S DIA DIA W X Y Z
CL-1-SWA-2 5/16-18 1-1/2 .80 9/16 .563 .88 3/4 2.39 1/2 2-1/4 5/32 3/8 .68 5/16-18 .16 11/16 15/16 3/4 3/4 .11 .80
CL-4-SWA-2 2
1/2-13 1.18 7/8 .875 .96 1-1/8 3.53 3/4 2-5/8 3/16 11/16 .99 1/2-13 .19 1 1-5/16 1-1/8 1 .15 .67
CL-5-SWA-2 2-1/2
CL-2-SWA-2 3
5/8-11 1.55 1-1/8 1.125 1.65 1-5/16 4.50 15/16 3 7/32 13/16 1.33 5/8-11 .22 1-5/16 1-3/4 1-1/2 1-3/8 .18 .74
CL-3-SWA-2 4
BALL HANDLE, POST MOUNTED (METRIC)
CLM-1-SWA-2 M8 1-1/2 .80 14mm .551 .88 3/4 2.39 1/2 2-1/4 5/32 .39 .68 5/16-18 .16 11/16 15/16 3/4 3/4 .10 .95
CLM-4-SWA-2 M12 2 1.18 22mm .866 .96 1-1/8 3.53 3/4 2-5/8 3/16 .67 .99 1/2-13 .19 1 1-5/16 1-1/8 1 .14 1.01
CLM-5-SWA-2 2-1/2
CLM-2-SWA-2 M16 3 1.55 28mm 1.102 1.65 1-1/2 4.50 15/16 3 7/32 .83 1.33 5/8-11 .22 1-5/16 1-3/4 1-1/2 1-3/8 .16 .66
CLM-3-SWA-2 4
