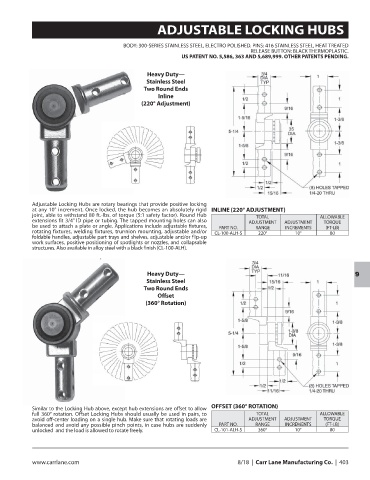

Page 405 - CarrLaneCatalog_2019ed-c.pdf

ADJUSTABLE LOCKING HUBS

BODY: 300-SERIES STAINLESS STEEL, ELECTRO POLISHED. PINS: 416 STAINLESS STEEL, HEAT TREATED
RELEASE BUTTON: BLACK THERMOPLASTIC.
US PATENT NO. 5,586, 363 AND 5,689,999. OTHER PATENTS PENDING.

Heavy Duty—
Stainless Steel
Two Round Ends
Inline
(220° Adjustment)

Adjustable Locking Hubs are rotary bearings that provide positive locking
at any 10° increment. Once locked, the hub becomes an absolutely rigid INLINE (220° ADJUSTMENT)
joint, able to withstand 80 ft.-lbs. of torque (5:1 safety factor). Round Hub TOTAL ALLOWABLE
extensions fit 3/4” ID pipe or tubing. The tapped mounting holes can also ADJUSTMENT ADJUSTMENT TORQUE
be used to attach a plate or angle. Applications include adjustable fixtures, PART NO. RANGE INCREMENTS (FT-LB)
rotating fixtures, welding fixtures, trunnion mounting, adjustable and/or CL-100-ALH-S 220° 10° 80
foldable handles, adjustable part trays and shelves, adjustable and/or flip-up
work surfaces, positive positioning of spotlights or nozzles, and collapsable
structures. Also available in alloy steel with a black finish (CL-100-ALH).

Heavy Duty—
9
Stainless Steel
Two Round Ends
Offset
(360° Rotation)

OFFSET (360° ROTATION)
Similar to the Locking Hub above, except hub extensions are offset to allow
full 360° rotation. Offset Locking Hubs should usually be used in pairs, to TOTAL ALLOWABLE
avoid off-center loading on a single hub. Make sure that rotating loads are ADJUSTMENT ADJUSTMENT TORQUE
balanced and avoid any possible pinch points, in case hubs are suddenly PART NO. RANGE INCREMENTS (FT-LB)
unlocked and the load is allowed to rotate freely. CL-101-ALH-S 360° 10° 80
