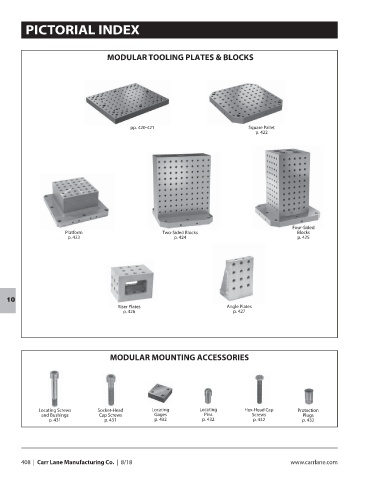

PICTORIAL INDEX
MODULAR TOOLING PLATES & BLOCKS
Rectangular
pp. 420-421 Square Pallet
p. 422
Four-Sided
Platform Two-Sided Blocks Blocks
p. 423 p. 424 p. 425
10
Riser Plates Angle Plates
p. 426 p. 427
MODULAR MOUNTING ACCESSORIES
Locating Screws Socket-Head Locating Locating Hex-Head Cap Protection
and Bushings Cap Screws Gages Pins Screws Plugs
p. 431 p. 431 p. 432 p. 432 p. 432 p. 432
