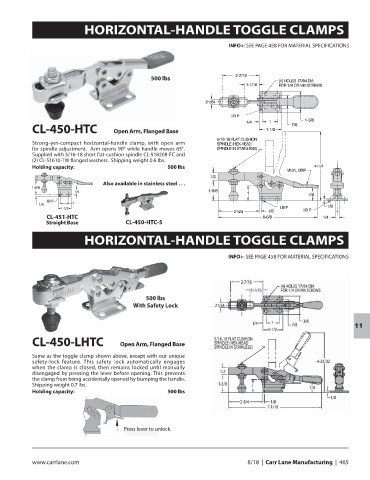

HORIZONTAL-HANDLE TOGGLE CLAMPS
INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS
500 lbs
CL-450-HTC Open Arm, Flanged Base
Strong-yet-compact horizontal-handle clamp, with open arm
for spindle adjustment. Arm opens 90° while handle moves 65°.
Supplied with 5/16-18 short flat-cushion spindle CL-518208-FC and
(2) CL-51610-TW flanged washers. Shipping weight 0.6 lbs.
Holding capacity: 500 lbs
Also available in stainless steel . . .
CL-451-HTC
Straight Base CL-450-HTC-S
HORIZONTAL-HANDLE TOGGLE CLAMPS
INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS
500 lbs
With Safety Lock
11
CL-450-LHTC Open Arm, Flanged Base
Same as the toggle clamp shown above, except with our unique
safety-lock feature. This safety lock automatically engages
when the clamp is closed, then remains locked until manually
disengaged by pressing the lever before opening. This prevents
the clamp from being accidentally opened by bumping the handle.
Shipping weight 0.7 lbs.
Holding capacity: 500 lbs
Press lever to unlock.
