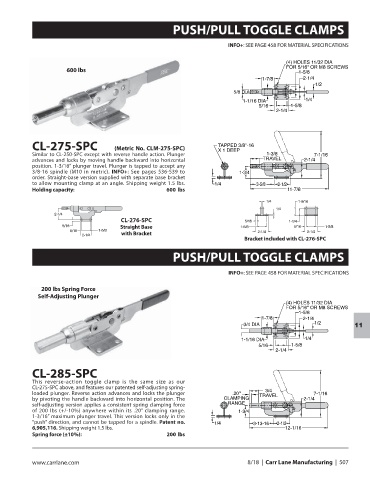

PUSH/PULL TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

600 lbs

CL-275-SPC (Metric No. CLM-275-SPC)
Similar to CL-250-SPC except with reverse handle action. Plunger
advances and locks by moving handle backward into horizontal
position. 1-3/16” plunger travel. Plunger is tapped to accept any
3/8-16 spindle (M10 in metric). INFO+: See pages 536-539 to
order. Straight-base version supplied with separate base bracket
to allow mounting clamp at an angle. Shipping weight 1.5 lbs.
Holding capacity: 600 lbs

CL-276-SPC
Straight Base
with Bracket
Bracket included with CL-276-SPC

PUSH/PULL TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

200 lbs Spring Force
Self-Adjusting Plunger
(4) HOLES 11/32 DIA
FOR 5/16" OR M8 SCREWS
1-5/8
1-7/8 2-1/4
3/4 DIA 1/2
11

1-1/16 DIA 1/4
5/16 1-5/8
2-1/4

CL-285-SPC
This reverse-action toggle clamp is the same size as our
CL-275-SPC above, and features our patented self-adjusting spring-
3/4
loaded plunger. Reverse action advances and locks the plunger .20" TRAVEL 7-1/16
by pivoting the handle backward into horizontal position. The CLAMPING 2-1/4
self-adjusting version applies a consistent spring clamping force RANGE
of 200 lbs (+/-10%) anywhere within its .20” clamping range. 1-3/4
1-3/16” maximum plunger travel. This version locks only in the
“push” direction, and cannot be tapped for a spindle. Patent no. 1/4 3-13-16 2-1/2
6,905,116. Shipping weight 1.5 lbs. 12-1/16
Spring force (±10%): 200 lbs
