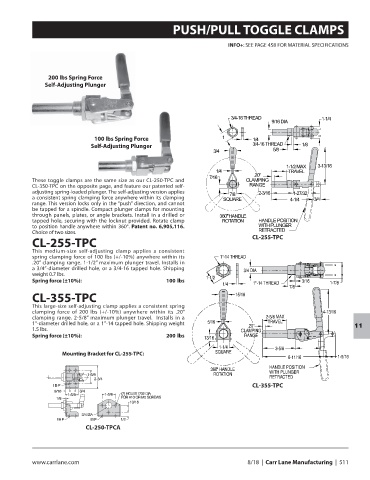

PUSH/PULL TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

200 lbs Spring Force
Self-Adjusting Plunger

100 lbs Spring Force
Self-Adjusting Plunger

These toggle clamps are the same size as our CL-250-TPC and
CL-350-TPC on the opposite page, and feature our patented self-
adjusting spring-loaded plunger. The self-adjusting version applies
a consistent spring clamping force anywhere within its clamping
range. This version locks only in the “push” direction, and cannot
be tapped for a spindle. Compact plunger clamps for mounting
through panels, plates, or angle brackets. Install in a drilled or
tapped hole, securing with the locknut provided. Rotate clamp
to position handle anywhere within 360°. Patent no. 6,905,116.
Choice of two sizes.
CL-255-TPC
CL-255-TPC
This medium-size self-adjusting clamp applies a consistent
spring clamping force of 100 lbs (+/-10%) anywhere within its
.20” clamping range. 1-1/2” maximum plunger travel. Installs in
a 3/4”-diameter drilled hole, or a 3/4-16 tapped hole. Shipping
weight 0.7 lbs.
Spring force (±10%): 100 lbs

CL-355-TPC
This large-size self-adjusting clamp applies a consistent spring
clamping force of 200 lbs (+/-10%) anywhere within its .20”
clamping range. 2-5/8” maximum plunger travel. Installs in a
1”-diameter drilled hole, or a 1”-14 tapped hole. Shipping weight
1.5 lbs. 11
Spring force (±10%): 200 lbs

Mounting Bracket for CL-255-TPC:

CL-355-TPC

CL-250-TPCA

www.carrlane.com 8/18 | Carr Lane Manufacturing | 511
