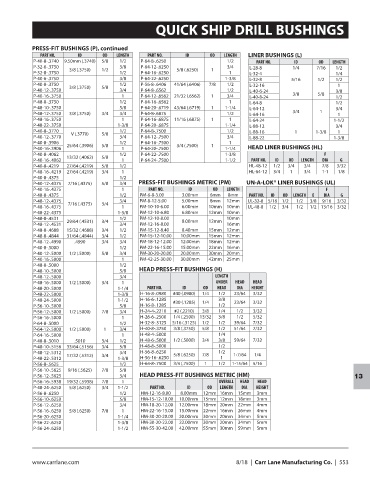

Page 555 - CarrLaneCatalog_2019ed-c.pdf

QUICK SHIP DRILL BUSHINGS

PRESS-FIT BUSHINGS (P), continued
PART NO. ID OD LENGTH PART NO. ID OD LENGTH LINER BUSHINGS (L)
P-40-8-.3740 9.50mm (.3740) 5/8 1/2 P-64-8-.6250 1/2 PART NO. ID OD LENGTH
P-32-6-.3750 3/8 P-64-12-.6250 3/4 L-28-8 1/4 7/16 1/2
3/8 (.3750) 1/2 5/8 (.6250) 1
P-32-8-.3750 1/2 P-64-16-.6250 1 L-32-4 1/4
P-40-6-.3750 3/8 P-64-22-.6250 1-3/8 L-32-8 5/16 1/2 1/2
P-40-8-.3750 1/2 P-56-8-.6406 41/64 (.6406) 7/8 1/2 L-32-16 1
3/8 (.3750) 5/8
P-40-12-.3750 3/4 P-64-8-.6562 1/2 L-40-6-24 3/8
P-40-16-.3750 1 P-64-12-.6562 21/32 (.6562) 1 3/4 L-40-8-24 3/8 5/8 1/2
P-48-8-.3750 1/2 P-64-16-.6562 1 L-64-8 1/2
P-48-10-.3750 5/8 P-64-20-.6719 43/64 (.6719) 1 1-1/4 L-64-12 3/4
P-48-12-.3750 3/8 (.3750) 3/4 3/4 P-64-8-.6875 1/2 L-64-16 3/4 1 1
P-48-16-.3750 1 P-64-16-.6875 11/16 (.6875) 1 1 L-64-24 1-1/2
P-48-22-.3750 1-3/8 P-64-20-.6875 1-1/4 L-88-12 3/4
P-40-8-.3770 V (.3770) 5/8 1/2 P-64-8-.7500 1/2 L-88-16 1 1-3/8 1
P-40-12-.3770 3/4 P-64-12-.7500 3/4 L-88-22 1-3/8
P-40-8-.3906 1/2 P-64-16-.7500 1
25/64 (.3906) 5/8 3/4 (.7500) 1
P-40-16-.3906 1 P-64-20-.7500 1-1/4 HEAD LINER BUSHINGS (HL)
P-40-8-.4062 1/2 P-64-22-.7500 1-3/8 F
13/32 (.4062) 5/8
P-40-16-.4062 1 P-64-24-.7500 1-1/2 PART NO. ID OD LENGTH DIA G
P-40-8-.4219 27/64 (.4219) 5/8 1/2 HL-48-12 1/2 3/4 3/4 7/8 3/32
P-48-16-.4219 27/64 (.4219) 3/4 1 HL-64-12 3/4 1 3/4 1-1 1/8
P-40-8-.4375 1/2
P-40-12-.4375 7/16 (.4375) 5/8 3/4 PRESS-FIT BUSHINGS METRIC (PM) UN-A-LOK® LINER BUSHINGS (UL)
P-40-16-.4375 1 PART NO. ID OD LENGTH F
P-48-8-.4375 1/2 PM-6-8-3.00 3.00mm 6mm 8mm PART NO. ID OD LENGTH E DIA G
P-48-12-.4375 3/4 PM-8-12-5.00 5.00mm 8mm 12mm UL-32-8 5/16 1/2 1/2 3/8 9/16 3/32
7/16 (.4375) 3/4
P-48-16-.4375 1 PM-10-10-6.00 6.00mm 10mm 10mm UL-48-8 1/2 3/4 1/2 1/2 13/16 3/32
P-48-22-.4375 1-3/8 PM-12-10-6.80 6.80mm 12mm 10mm
P-48-8-.4531 29/64 (.4531) 3/4 1/2 PM-12-10-8.00 8.00mm 12mm 10mm
P-48-12-.4531 3/4 PM-12-16-8.00 16mm
P-48-8-.4688 15/32 (.4688) 3/4 1/2 PM-15-12-8.40 8.40mm 15mm 12mm
P-48-8-.4844 31/64 (.4844) 3/4 1/2 PM-15-12-10.00 10.00mm 15mm 12mm
P-48-12-.4990 .4990 3/4 3/4 PM-18-12-12.00 12.00mm 18mm 12mm
P-40-8-.5000 1/2 PM-22-16-15.00 15.00mm 22mm 16mm
P-40-12-.5000 1/2 (.5000) 5/8 3/4 PM-30-20-20.00 20.00mm 30mm 20mm
P-40-16-.5000 1 PM-42-25-30.00 30.00mm 42mm 25mm
P-48-8-.5000 1/2
P-48-10-.5000 5/8 HEAD PRESS-FIT BUSHINGS (H)
P-48-12-.5000 3/4 LENGTH
P-48-16-.5000 1/2 (.5000) 3/4 1 UNDER HEAD HEAD
P-48-20-.5000 1-1/4 PART NO. ID OD HEAD DIA HEIGHT
P-48-22-.5000 1-3/8 H-16-8-.0980 #40 (.0980) 1/4 1/2 23/64 3/32
P-48-24-.5000 1-1/2 H-16-6-.1285 #30 (.1285) 1/4 3/8 23/64 3/32
P-56-10-.5000 5/8 H-16-8-.1285 1/2
P-56-12-.5000 1/2 (.5000) 7/8 3/4 H-24-4-.2210 #2 (.2210) 3/8 1/4 1/2 3/32
P-56-16-.5000 1 H-26-6-.2500 1/4 (.2500) 13/32 3/8 1/2 5/32
P-64-8-.5000 1/2 H-32-8-.3125 5/16 (.3125) 1/2 1/2 39/64 7/32
P-64-12-.5000 1/2 (.5000) 1 3/4 H-40-8-.3750 3/8 (.3750) 5/8 1/2 51/64 7/32
P-64-16-.5000 1 H-48-4-.5000 1/4
P-48-8-.5010 .5010 3/4 1/2 H-48-6-.5000 1/2 (.5000) 3/4 3/8 59/64 7/32
P-48-10-.5156 33/64 (.5156) 3/4 5/8 H-48-8-.5000 1/2
P-48-12-.5312 17/32 (.5312) 3/4 3/4 H-56-8-.6250 5/8 (.6250) 7/8 1/2 1-7/64 1/4
P-48-22-.5312 1-3/8 H-56-16-.6250 1
P-56-8-.5625 1/2 H-64-8-.7500 3/4 (.7500) 1 1/2 1-15/64 5/16
P-56-10-.5625 9/16 (.5625) 7/8 5/8
P-56-12-.5625 3/4 HEAD PRESS-FIT BUSHINGS METRIC (HM)
13
P-56-16-.5938 19/32 (.5938) 7/8 1 OVERALL HEAD HEAD
P-48-24-.6250 5/8 (.6250) 3/4 1-1/2 PART NO. ID OD LENGTH DIA HEIGHT
P-56-8-.6250 1/2 HM-12-16-8.00 8.00mm 12mm 16mm 15mm 3mm
P-56-10-.6250 5/8 HM-15-12-10.00 10.00mm 15mm 12mm 18mm 3mm
P-56-12-.6250 3/4 HM-18-20-12.00 12.00mm 18mm 20mm 22mm 4mm
P-56-16-.6250 5/8 (.6250) 7/8 1 HM-22-16-15.00 15.00mm 22mm 16mm 26mm 4mm
P-56-20-.6250 1-1/4 HM-30-20-20.00 20.00mm 30mm 20mm 34mm 5mm
P-56-22-.6250 1-3/8 HM-30-20-22.00 22.00mm 30mm 20mm 34mm 5mm
P-56-24-.6250 1-1/2 HM-55-30-42.00 42.00mm 55mm 30mm 59mm 5mm

www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 553
