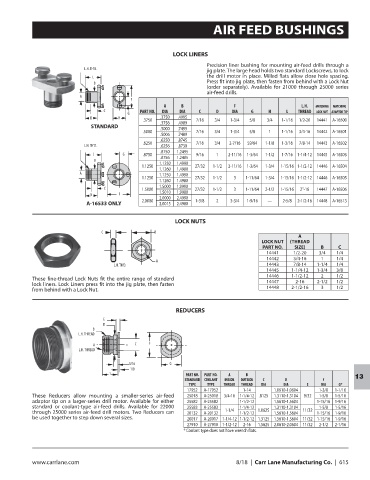

AIR FEED BUSHINGS

LOCK LINERS
Precision liner bushing for mounting air-feed drills through a
L.H. TH’D.
jig plate. The large head holds two standard Lockscrews, to lock
L the drill motor in place. Milled flats allow close hole spacing.
B Press fit into jig plate, then fasten from behind with a Lock Nut
(order separately). Available for 21000 through 25000 series
air-feed drills.
A
F
A B F L.H. MATCHING MATCHING
C PART NO. DIA DIA C D DIA G H L THREAD LOCK NUT ADAPTOR TIP
G
D H .3750 .3750 .4995 7/16 3/4 1-3/4 5/8 3/4 1-1/16 1/2-20 14441 A-16500
.3756 .4989
STANDARD .5000 .7495
.5000 7/16 3/4 1-3/4 5/8 1 1-1/16 3/4-16 14442 A-16501
.5006 .7489
.6250 .8745
.6250 7/16 3/4 2-7/16 59/64 1-1/8 1-3/16 7/8-14 14443 A-16502
L.H. TH’D. .6256 .8739
.8750 1.2495
L G .8750 9/16 1 2-11/16 1-3/64 1-1/2 1-7/16 1-1/4-12 14445 A-16503
B .8756 1.2485
1.1250 1.4990
1.1250 27/32 1-1/2 2-11/16 1-3/64 1-3/4 1-15/16 1-1/2-12 14446 A-16504
1.1260 1.4980
A 1.1250 1.4990
1.1250 27/32 1-1/2 3 1-11/64 1-3/4 1-15/16 1-1/2-12 14446 A-16505
1.1260 1.4980
1.5000 1.9990
C 1.5000 27/32 1-1/2 3 1-11/64 2-1/2 1-15/16 2”-16 14447 A-16506
D F 1.5010 1.9980
2.0000 2.4990
2.0000 1-3/8 2 3-3/4 1-9/16 — 2-5/8 2-1/2-16 14448 A-16513
A-16533 ONLY 2.0015 2.4980
LOCK NUTS
C B
A
LOCK NUT (THREAD
PART NO. SIZE) B C
14441 1/2-20 3/4 1/4
14442 3/4-16 1 1/4
A
L.H. TH’D. 14443 7/8-14 1-1/4 1/4
14445 1-1/4-12 1-3/4 3/8
14446 1-1/2-12 2 1/2
These fine-thread Lock Nuts fit the entire range of standard 14447 2-16 2-1/2 1/2
lock liners. Lock Liners press fit into the jig plate, then fasten
from behind with a Lock Nut. 14448 2-1/2-16 3 1/2
REDUCERS
E
D
B
L.H. THREAD

A C F
L.H. THREAD
5/16 G
1/8
1 PART NO. PART NO. A B
STANDARD COOLANT INSIDE OUTSIDE C D F 13
TYPE TYPE THREAD THREAD DIA DIA E DIA G*
17952 A-17952 1-14 1.0610-1.0604 1-3/8 1-1/16
These Reducers allow mounting a smaller-series air-feed 25018 A-25018 3/4-16 1-1/4-12 .8125 1.3110-1.3104 9/32 1-5/8 1-5/16
adaptor tip on a larger-series drill motor. Available for either 25582 A-25582 1-1/2-12 1.5610-1.5604 1-15/16 1-9/16
standard or coolant-type air-feed drills. Available for 22000 25583 A-25583 1-1/4-12 1.3110-1.3104 1-5/8 1-5/16
through 25000 series air-feed drill motors. Two Reducers can 20132 A-20132 1-1/4 1-1/2-12 1.0625 1.5610-1.5604 11/32 1-15/16 1-9/16
be used together to step down several sizes. 20017 A-20017 1-1/4-12 1-1/2-12 1.3125 1.5610-1.5604 11/32 1-15/16 1-9/16
27910 A-27910 1-1/2-12 2-16 1.5625 2.0610-2.0604 11/32 2-1/2 2-1/16
* Coolant type does not have wrench flats.
