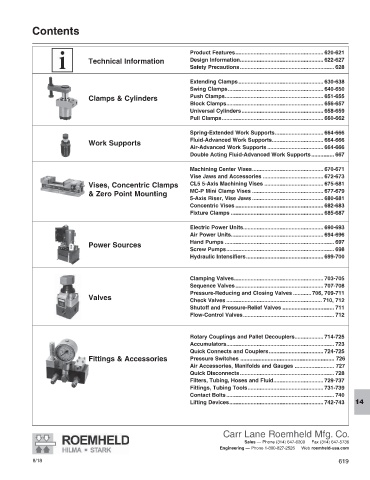

Contents

Product Features .......................................................... 620-621
Technical Information Design Information ....................................................... 622-627
Safety Precautions .............................................................. 628

Extending Clamps ........................................................ 630-638
Swing Clamps ............................................................... 640-650
Clamps & Cylinders Push Clamps ................................................................. 651-655
Block Clamps ................................................................ 656-657
Universal Cylinders ...................................................... 658-659
Pull Clamps ................................................................... 660-662

Spring-Extended Work Supports ................................ 664-666
Fluid-Advanced Work Supports .................................. 664-666
Work Supports
Air-Advanced Work Supports ..................................... 664-666
Double Acting Fluid-Advanced Work Supports ............... 667

Machining Center Vises ............................................... 670-671
Vise Jaws and Accessories ........................................ 672-673
Vises, Concentric Clamps CL5 5-Axis Machining Vises ....................................... 675-681
MC-P Mini Clamp Vises ............................................... 677-679
& Zero Point Mounting
5-Axis Riser, Vise Jaws ............................................... 680-681
Concentric Vises .......................................................... 682-683
Fixture Clamps ............................................................. 685-687

Electric Power Units ..................................................... 690-693
Air Power Units ............................................................. 694-696
Hand Pumps ........................................................................ 697
Power Sources
Screw Pumps ....................................................................... 698
Hydraulic Intensifiers ................................................... 699-700

Clamping Valves ........................................................... 703-705
Sequence Valves .......................................................... 707-708
Pressure-Reducing and Closing Valves ............ 706, 709-711
Valves Check Valves ............................................................... 710, 712
Shutoff and Pressure-Relief Valves .................................. 711
Flow-Control Valves ............................................................ 712

Rotary Couplings and Pallet Decouplers ................... 714-725
Accumulators ....................................................................... 723
Quick Connects and Couplers .................................... 724-725
Fittings & Accessories Pressure Switches .............................................................. 726
Air Accessories, Manifolds and Gauges .......................... 727
Quick Disconnects .............................................................. 728
Filters, Tubing, Hoses and Fluid ................................. 729-737
Fittings, Tubing Tools .................................................. 731-739
Contact Bolts ....................................................................... 740
Lifting Devices .............................................................. 742-743 14

Carr Lane Roemheld Mfg. Co.
Sales — Phone (314) 647-6200 Fax (314) 647-5736
Engineering — Phone 1-800-827-2526 Web roemheld-usa.com
8/18 619
