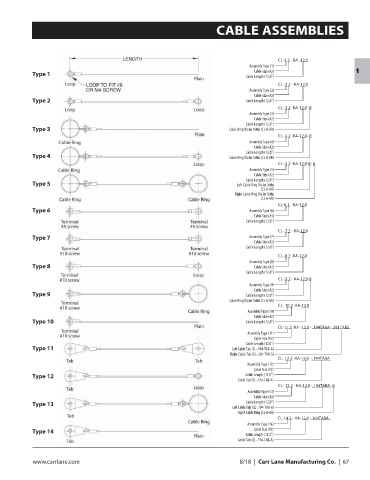

CABLE ASSEMBLIES

CL-1 2 - KA -12.0
Assembly Type (1)
Cable Size (#2)
Type 1 1
Cable Length (12.0”)
CL -2 2 - KA-12.0
Assembly Type (2)
Cable Size (#2)
Type 2 Cable Length (12.0”)
CL- 3 2 -KA-12.0 -8
Assembly Type (3)
Cable Size (#2)
Cable Length (12.0”)
Type 3 Cable Ring Dia in 16ths (CL-8-KR)
CL- 4 2 -KA-12.0- 8
Assembly Type (4)
Cable Size (#2)
Cable Length (12.0”)
Type 4 Cable Ring Dia in 16ths (CL-8-KR)
CL- 5 2 -KA-12.0-8- 6
Assembly Type (5)
Cable Size (#2)
Cable Length (12.0”)
Type 5 Left Cable Ring Dia in 16ths
(CL-8-KR)
Right Cable Ring Dia in 16ths
(CL-6-KR)
CL-6 3 -KA-12.0
Type 6 Assembly Type (6)
Cable Size (#3)
Cable Length (12.0”)
CL- 7 2 - KA-12.0
Type 7 Assembly Type (7)
Cable Size (#2)
Cable Length (12.0”)
CL- 8 2 -KA-12.0
Assembly Type (8)
Type 8 Cable Size (#2)
Cable Length (12.0”)
CL- 9 2 - KA-12.0-8
Assembly Type (9)
Cable Size (#2)
Type 9 Cable Length (12.0”)
Cable Ring Dia in 16ths (CL-8-KR)
CL- 10 2 -KA-12.0
Assembly Type (10)
Cable Size (#2)
Type 10 Cable Length (12.0”)
CL-11 2 -KA -12.0 - .194TABA -.281TABS
Assembly Type (11)
Cable Size (#2)
Cable Length (12.0”)
Type 11 Left Cable Tab (CL-.194-TAB-A)
Right Cable Tab (CL-.281-TAB-S)
CL- 12 2 -KA-12.0 - .194TABA
Assembly Type (12)
Cable Size (#2)
Type 12 Cable Length (12.0”)
Cable Tab (CL-.194-TAB-A)
CL- 13 2 - KA-12.0 -.194TABA -8
Assembly Type (13)
Cable Size (#2)
Cable Length (12.0”)
Type 13
Left Cable Tab (CL-.194-TAB-A)
Right Cable Ring (CL-8-KR)
CL-14 2 - KA-12.0 -.194TABA
Assembly Type (14)
Cable Size (#2)
Type 14
Cable Length (12.0”)
Cable Tab (CL-.194-TAB-A)
